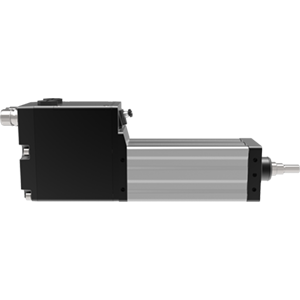

TTX horizontal

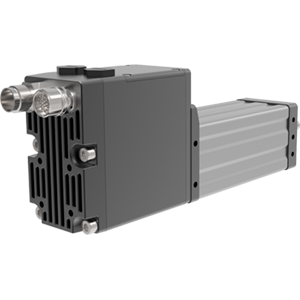

TTX back
previous
next

Tritex® TTX Series

Intelligent Drive | Motor | Actuator

Industrial - Exlar

Benefits
  • Reduced electrical cabinet space.
  • Easily retrofit into existing applications.
  • Increased motion control compared to fluid actuation.
  • Lower total cost of ownership.

Features
  • Decentralized intelligent servo actuator solution.
  • Easy-to-use, mechanical based configuration software.
  • Long, robust actuator life due to inverted roller screw technology.
  • Sealed to IP66S for harsh industrial environments.
More Details

Overview

Tritex® TTX Series

Quick Data
ModelsFrame Size mm ( in)Peak Force N (lbf)Continuous Force N (lbf)Max Speed mm/s (in/s)
TTX06060 (2.36)
DC -   4,618 (1,038)
DC - 2,566 (552)
DC - 847 (33)
TTX08080 (3.15)
AC - 11,800 (2,650)
DC -   9,940 (2,270)
AC - 5,900 (1,325)
DC - 4,970 (1,115)
AC - 635 (25)
DC - 508 (20)

Industry-Leading Intelligent Electromechanical Actuator

Built on the unique GTX Series platform, the Tritex TTX Series actuators integrate a servo drive / controller, brushless servo motor, and an inverted roller screw actuator in one compact, environmentally sealed package. A complete decentralized solution eliminates much the control cabinet and cabling headaches associated with typical centralized control architectures, speeding installation, and lowering total cost of ownership. The Tritex TTX Series makes an ideal solution for machine retrofits and single axis applications.

More Benefits

  • Powerful, easy to use software
  • Multi-position programmability and precise positioning
  • Industry standard Ethernet communication options (EtherNet/IP, PROFINET IO, and Modbus TCP)
  • Power density, durability and form factor of hydraulic actuators
  • Environmentally sealed (IP66S) for use in harsh industrial environments

Related Industries







Quick Data
Models:TTX060, TTX080
Frame Sizes:60 mm (2.36 in), 80 mm (3.14 in)
Stroke Length:100 mm (3.94 in ), 150 mm (6 in ) , 300 mm (12 in ), 450 mm (18 in)
Screw Leads:TTX060 - 2.54 mm (0.1 in), 5.08 mm (0.2 in), 10.16 mm (0.4 in)
TTX080 - 2.54 mm (0.1 in), 5.08 mm (0.2 in), 12.70 mm (0.5 in)
Linear Speed:Up to 635 mm/s (25 in/s) for AC and 508 mm/s (20 in/s) for DC
Continuous Force Capacity:Continuous force up to 5,897 N (1,326 lbf) for AC and 4,970 N (1,117 lbf) for DC
Standards/Ratings:CE, UKCA, RoHS, and UL Certifications, UL Class 180H insulation, IP66S

AAA = Actuator Frame Size
060 = 60 mm (2.36 in)
080 = 80 mm (3.15 in)

BBB = Stroke Length
080 = 80 mm  - TTX060 only
100 = 100 mm  - TTX080 only
150 = 150 mm
300 = 300 mm
450 = 450 mm - TTX080 only

CC = Screw Lead
01 =  2.54 mm (0.10 in)
02 =  5.08 mm (0.20 in)
04 = 10.2 mm (0.40 in) - TTX060 only
05 = 12.7 mm (0.50 in) - TTX080 only

D = Winding Voltage
4 = 230 Vac Max - TTX080 only
D = 48 Vdc Max

E = Rod End Thread
A = Male Metric
B = Female Metric2
C = Male Metric, Splined2
D = Female Metric, Splined2
F = Female Standard2
G = Male Standard, Splined2
H = Female Standard, Splined2
L = Female Metric, 17-4 Stainless2
M = Male Standard2
R = Male Metric, 17-4 Stainless2
V = Female Standard, 17-4 Stainless2
W = Male Standard, 17-4 Stainless2

F = Internal Holding Brake
N = No Brake
B = Internal Holding Brake, Electrically Released

G = Amplifier Voltage
A = 230 Vac 1-ph Max Input
D = 48 Vdc Max Input

HHH = Option Boards
SIO = Standard I/O
IA4 = 4-20 mA Analog I/O
EIP = SIO plus EtherNet/IP w/M12 connector
PIO = SIO plus PROFINET IO w/M12 connector
TCP = SIO plus Modbus TCP w/M12 connector

M = Mounting Options
N = None
1 = Front Flange, Metric
3 = Tapped Face, Metric
5 = Rear Clevis, Metric
F = Front Flange, Standard2
C = Rear Clevis, Standard2

N = Accessory Options
N = None
A = Anti-Rotate Assembly
L = Limit Switch Housing / Anti-Rotate Assembly1


NOTES:
1. Switches sold separately
2. Available option. May add lead time.

* Some options are not available with every configuration. For options or specials not listed above contact your local Exlar representative


Anti-Rotate, External
This assembly restricts the actuator output rod from rotating when the load is not held by another method. Shorter actuators have a single anti-rotation mechanism; longer lengths have a mechanism on both sides.

Front Mounting Flange, Metric
Front mounting flange, includes thru-holes for face-mounting

Limit Switch Housing/ Anti-Rotate Assembly
External travel switches indicate travel to the controller and are adjustable for either the home or end position. Switches not included.

Rear Clevis, Metric
Rear clevis mount, allows actuator to pivot while in motion

Splined Rod (Internal Anti-Rotate)
A ball spline shafting main rod with a ball spline nut that replaces the standard front seal and bushing assembly. This rod restricts rotation without the need for an external mechanism. The rod diameter will be the closest metric equivalent to our standard rod sizes. Since this option is NOT sealed, it is not suitable for environments in which contaminants may enter the actuator.

Stainless Steel Rod Option
All thread options on the GTX product line are available in 17-4 stainless steel. This option provides improved corrosion resistance for the main rod of the actuator. This option can be beneficial in applications where the rod could be exposed to harsh chemicals or outdoor environments.

Tapped Face, Metric
Tapped mounting holes in front flange face, allows face-mounting of actuator

Product Specifications

TTX060 Performance SpecificationsOpen arrow

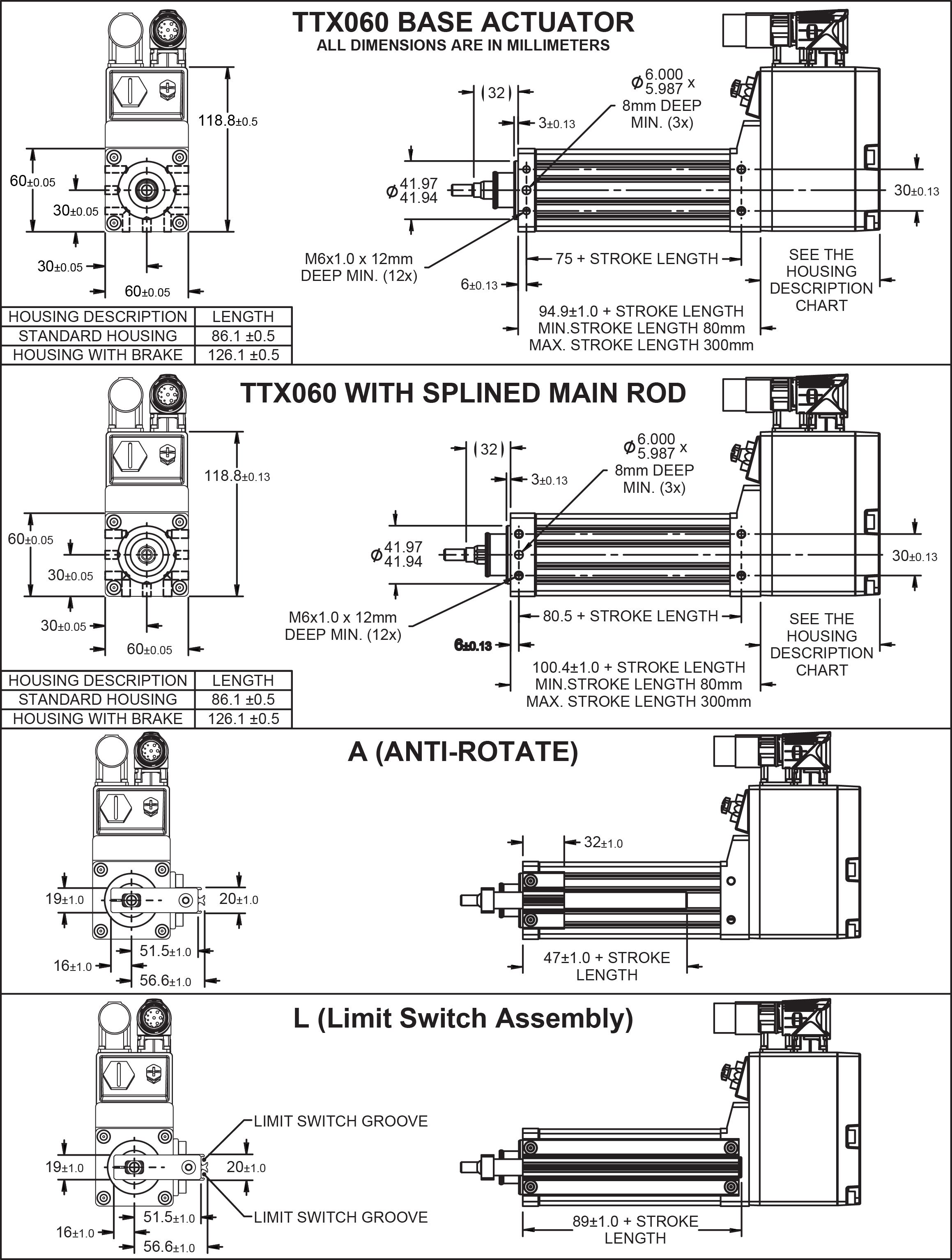

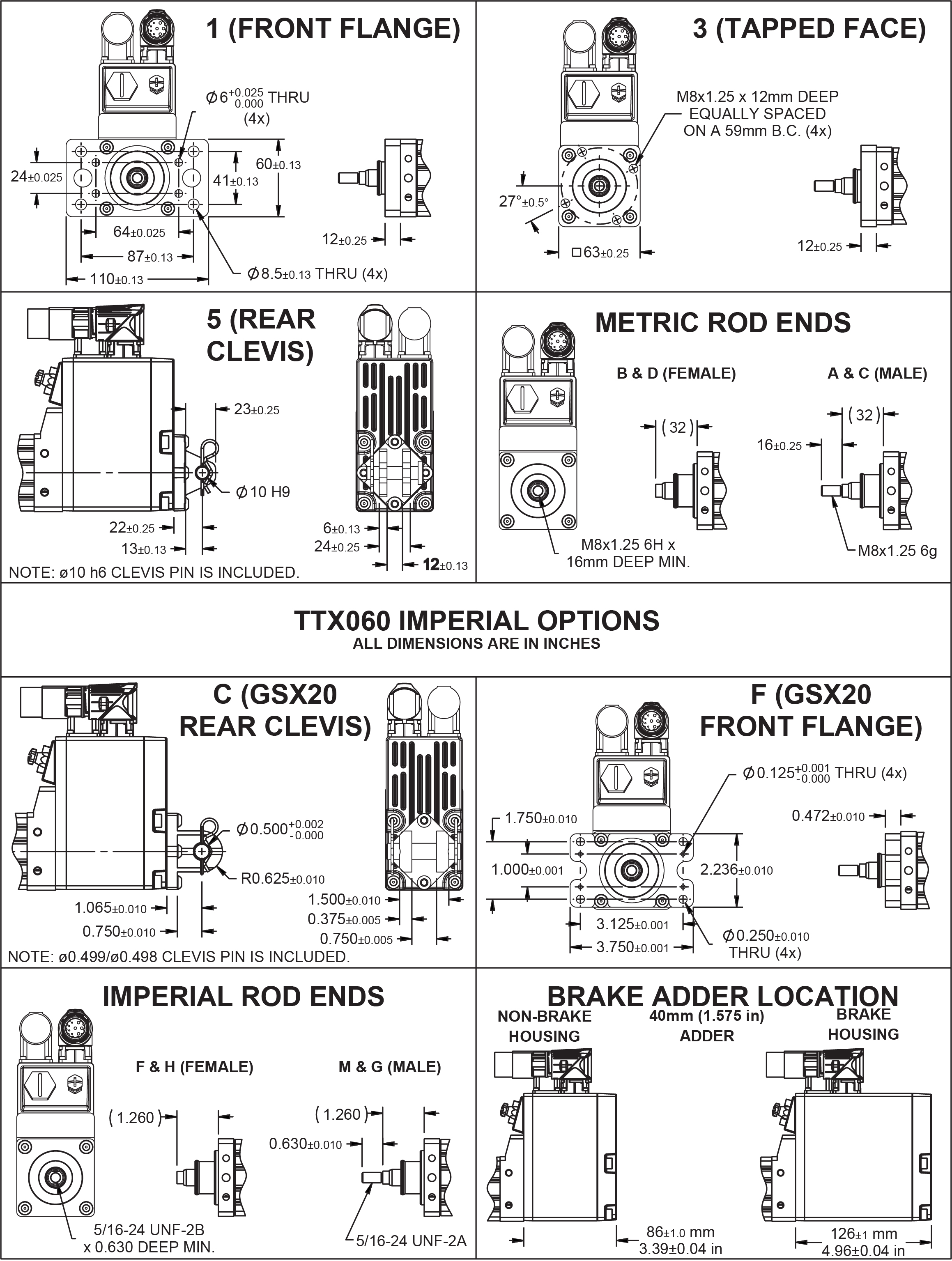

TTX060 Mechanical Specifications

  STROKE MM (IN) SCREW LEAD MM (IN) CONTINUOUS FORCE RATING N (LBF) PEAK FORCE RATING N (LBF) MAX VELOCITY MM/S (IN/S) DYNAMIC LOAD RATING N (LBF) ARMATURE INERTIA KG-M^2 (IN-LB-S^2) MAXIMUM CONTINUOUS INPUT CURRENT
      D (Vdc) D (Vdc) D (Vdc)     D (Vdc) Arms
TTX060-080-01 80 (3.15) 2.54 (0.1) 2,566 (577) 4,618 (1,038) 202 (8.3) 9,230 (2,075) 0.00007367 (0.000652) 18.0
TTX060-080-02 5.08 (0.2) 1,363 (306) 2,454 (552) 423 (16.7) 6,850 (1,540)
TTX060-080-04 10.16 (0.4) 722 (162) 1,299 (292) 847 (33.3) 5,471 (1,230)
TTX060-150-01 150
(5.9)
2.54 (0.1) 2,566 (577) 4,618 (1,038) 202 (8.3) 9,230 (2,075) 0.00008689 (0.000769)
TTX060-150-02 5.08 (0.2) 1,363 (306) 2,454 (552) 423 (16.7) 6,850 (1,540)
TTX060-150-04 10.16 (0.4) 722 (162) 1,299 (292) 847 (33.3) 5,471 (1,230)
TTX060-300-01 300
(11.8)
2.54 (0.1) 2,566 (577) 4,618 (1,038) 202 (8.3) 9,230 (2,075) 0.00011537 (0.001021)
TTX060-300-02 5.08 (0.2) 1,363 (306) 2,454 (552) 423 (16.7) 6,850 (1,540)
TTX060-300-04 10.16 (0.4) 722 (162) 1,299 (292) 847 (33.3) 5,471 (1,230)

Specifications subject to change without notice.
Test data derived using NEMA recommended aluminum heatsink 10" x 10" x 3/8" at 25 °C ambient.
Maximum velocities listed at maximum voltages



TTX060 Weights

Description

Weight kg (lb)

TTX060-080

2.32 (5.11)

TTX060-150

2.82 (6.2)

TTX060-300

3.88 (8.54)

Brake Adder

0.65 (1.42)

Front Flange (1)

0.4 (0.89)

Tapped Face (3)

0.25 (.54)

Rear Clevis (5)

0.21 (0.46)

Imperial Flange (F)

0.3 (0.67)

Imperial Clevis (C)

0.33 (0.72)

Anti Rotate (80 mm stroke)

0.46 (1.0)

Anti Rotate (150 mm stroke)

0.54 (1.2)

Anti Rotate (300 mm stroke)

0.72 (1.6)

Limit Switch Assembly (80 mm stroke)

0.67 (1.5)

Limit Switch Assembly (150 mm stroke)

0.81 (1.8)

Limit Switch Assembly (300 mm stroke)

1.11 (2.5)





TTX060 Brake Specifications

Brake Holding Torque (minimum)

Nm

2.5

lbf-in

22

Brake Voltage

Vdc

24 (-10%/+6%)

Nominal Brake Current at 24 Vdc

A

0.46

Brake Engage/Disengage Time (typical)

ms

10/25




TTX080 Performance SpecificationsOpen arrow

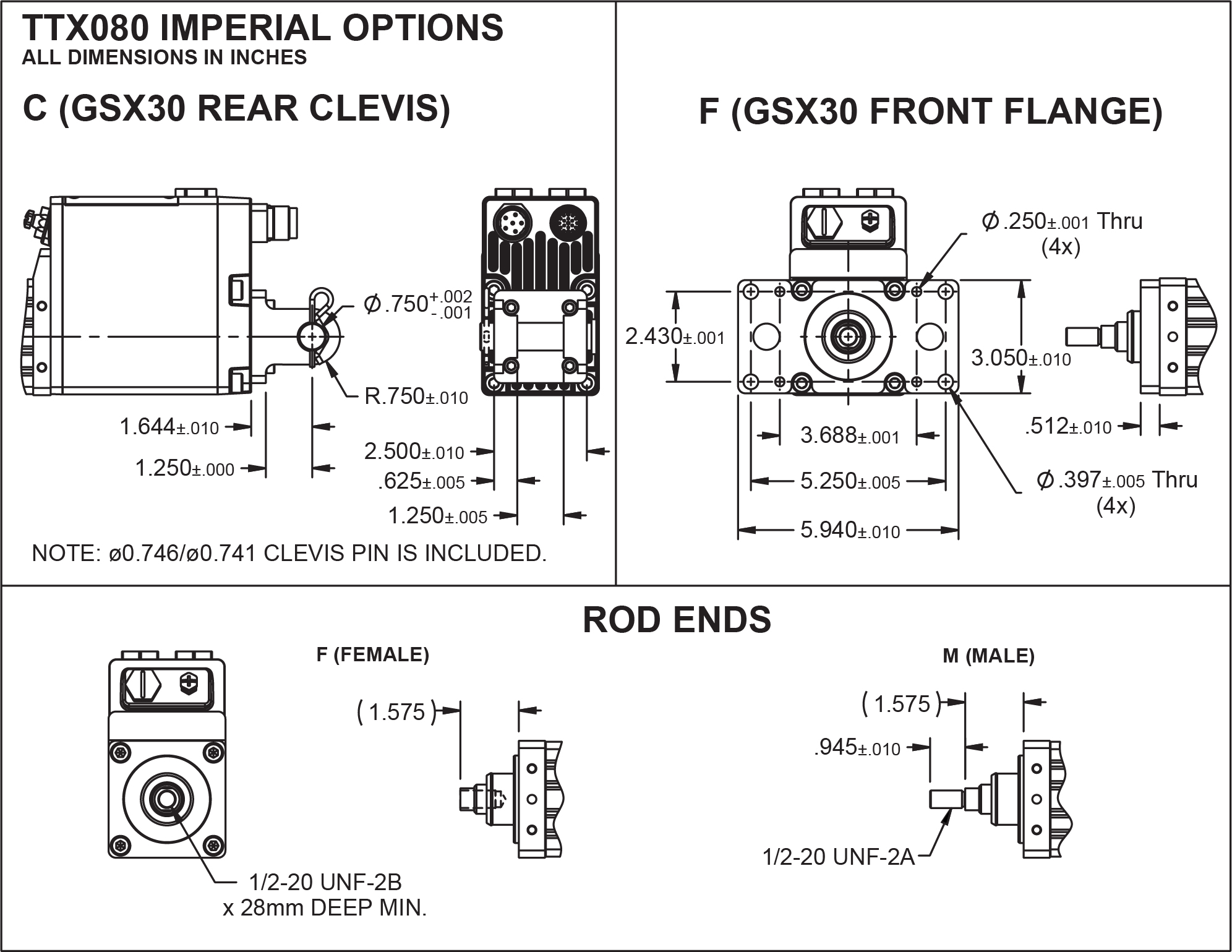

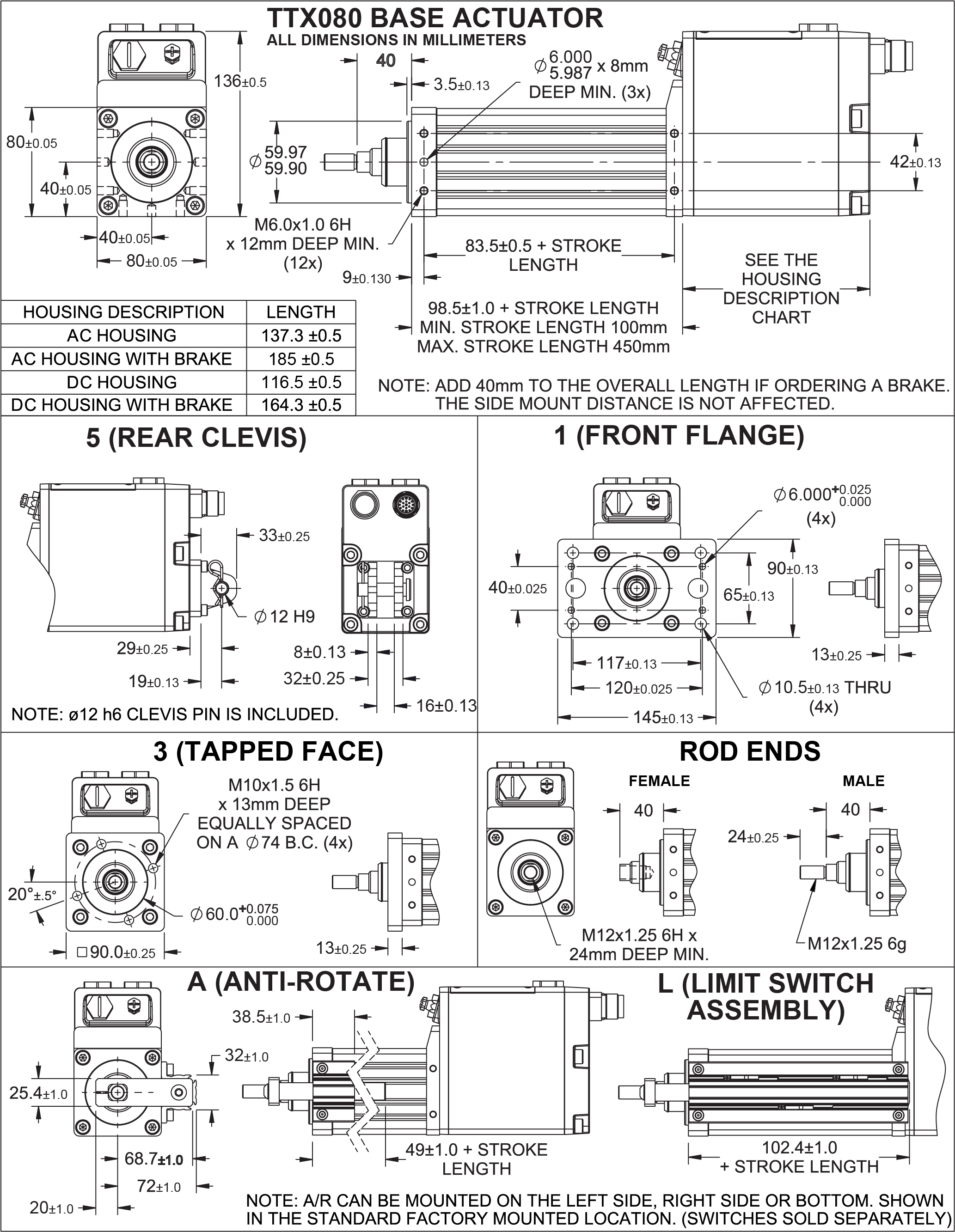

TTX080 Mechanical Specifications

  STROKE MM (IN) SCREW LEAD MM (IN) CONTINUOUS FORCE RATING N (LBF) PEAK FORCE RATING N (LBF) MAX VELOCITY MM/S (IN/S) DYNAMIC LOAD RATING N (LBF) ARMATURE INERTIA KG-M^2 (IN-LB-S^2) MAXIMUM CONTINUOUS INPUT CURRENT
Specifications subject to change without notice. Test data derived using NEMA recommended aluminum heatsink 10" x 10" x 3/8" at 25°C ambient. Maximum velocities listed at maximum voltages
      4 (Vac) D (Vdc) 4 (Vac) D (Vdc) 4 (Vac) D (Vdc)     A (Vac) Arms D (Vdc) Arms
TTX080-100-01 100 (3.9) 2.54 (0.1) 5,897 (1,326) 4,970 (1,117) 11,794 (2,651) 8,946 (2,011) 127 (5.0) 102 (4.0) 24,535 (5,516) 0.000340 (0.003013) 4.1 18
TTX080-100-02   5.08 (0.2) 3,342 (751) 2,816 (633) 6,683 (1,502) 5,069 (1,140) 254 (10.0) 203 (8.0) 25,798 (5,800) 0.000340 (0.003013) 4.1 18
TTX080-100-05   12.7 (0.5) 1,415 (318) 1,193 (268) 2,830 (636) 2,147 (483) 635 (25.0) 508 (20.0) 21,795 (4,900) 0.000340 (0.003013) 4.1 18
TTX080-150-01 150 (5.9) 2.54 (0.1) 5,897 (1,326) 4,970 (1,117) 11,794 (2,651) 8,946 (2,011) 127 (5.0) 102 (4.0) 24,535 (5,516) 0.000369 (0.003267) 4.1 18
TTX080-150-02   5.08 (0.2) 3,342 (751) 2,816 (633) 6,683 (1,502) 5,069 (1,140) 254 (10.0) 203 (8.0) 25,798 (5,800) 0.000369 (0.003267) 4.1 18
TTX080-150-05   12.7 (0.5) 1,415 (318) 1,193 (268) 2,830 (636) 2,147 (483) 635 (25.0) 508 (20.0) 21,795 (4,900) 0.000369 (0.003267) 4.1 18
TTX080-300-01 300 (11.8) 2.54 (0.1) 5,897 (1,326) 4,970 (1,117) 11,794 (2,651) 8,946 (2,011) 127 (5.0) 102 (4.0) 24,535 (5,516) 0.000455 (0.004029) 4.1 18
TTX080-300-02   5.08 (0.2) 3,342 (751) 2,816 (633) 6,683 (1,502) 5,069 (1,140) 254 (10.0) 203 (8.0) 25,798 (5,800) 0.000455 (0.004029) 4.1 18
TTX080-300-05   12.7 (0.5) 1,415 (318) 1,193 (268) 2,830 (636) 2,147 (483) 635 (25.0) 508 (20.0) 21,795 (4,900) 0.000455 (0.004029) 4.1 18
TTX080-450-01 450 (17.7) 2.54 (0.1) 5,897 (1,326) 4,970 (1,117) 11,794 (2,651) 8,946 (2,011) 127 (5.0) 102 (4.0) 24,535 (5,516) 0.000541 (0.004790) 4.1 18
TTX080-450-02   5.08 (0.2) 3,342 (751) 2,816 (633) 6,683 (1,502) 5,069 (1,140) 254 (10.0) 203 (8.0) 25,798 (5,800) 0.000541 (0.004790) 4.1 18
TTX080-450-05   12.7 (0.5) 1,415 (318) 1,193 (268) 2,830 (636) 2,147 (483) 635 (25.0) 508 (20.0) 21,795 (4,900) 0.000541 (0.004790) 4.1 18





TTX080 Weights

DESCRIPTION WEIGHT KG (LB)
TTX080-100 5.5 (12.2)
TTX080-150 6.2 (13.5)
TTX080-300 8.0 (17.6)
TTX080-450 9.8 (21.6)
Brake Adder 1.1 (2.5)
Front Flange (1) 1.0 (2.2)
Tapped Face (3) 0.6 (1.2)
Rear Clevis (5) 0.4 (0.8)
Imperial Flange (F) 0.8 (1.8)
Imperial Clevis (C) 0.8 (1.7)
Anti Rotate (100 mm stroke) 0.5 (1.1)
Anti Rotate (150 mm stroke) 0.6 (1.3)
Anti Rotate (300 mm stroke) 0.8 (1.8)
Anti Rotate (450 mm stroke) 1.1 (2.4)
Limit Switch Assembly (100 mm stroke) 0.9 (1.9)
Limit Switch Assembly (150 mm stroke) 1.0 (2.3)
Limit Switch Assembly (300 mm stroke) 1.6 (3.5)
Limit Switch Assembly (450 mm stroke) 2.1 (4.7)



TTX080 Brake Specifications

Brake Holding Torque (minimum)

Nm

4.5

lbf-in

40

Brake Voltage

Vdc

24 (-10%/+6%)

Nominal Brake Current at 24 Vdc

A

0.5

Brake Engage/Disengage Time (typical)

ms

18/35

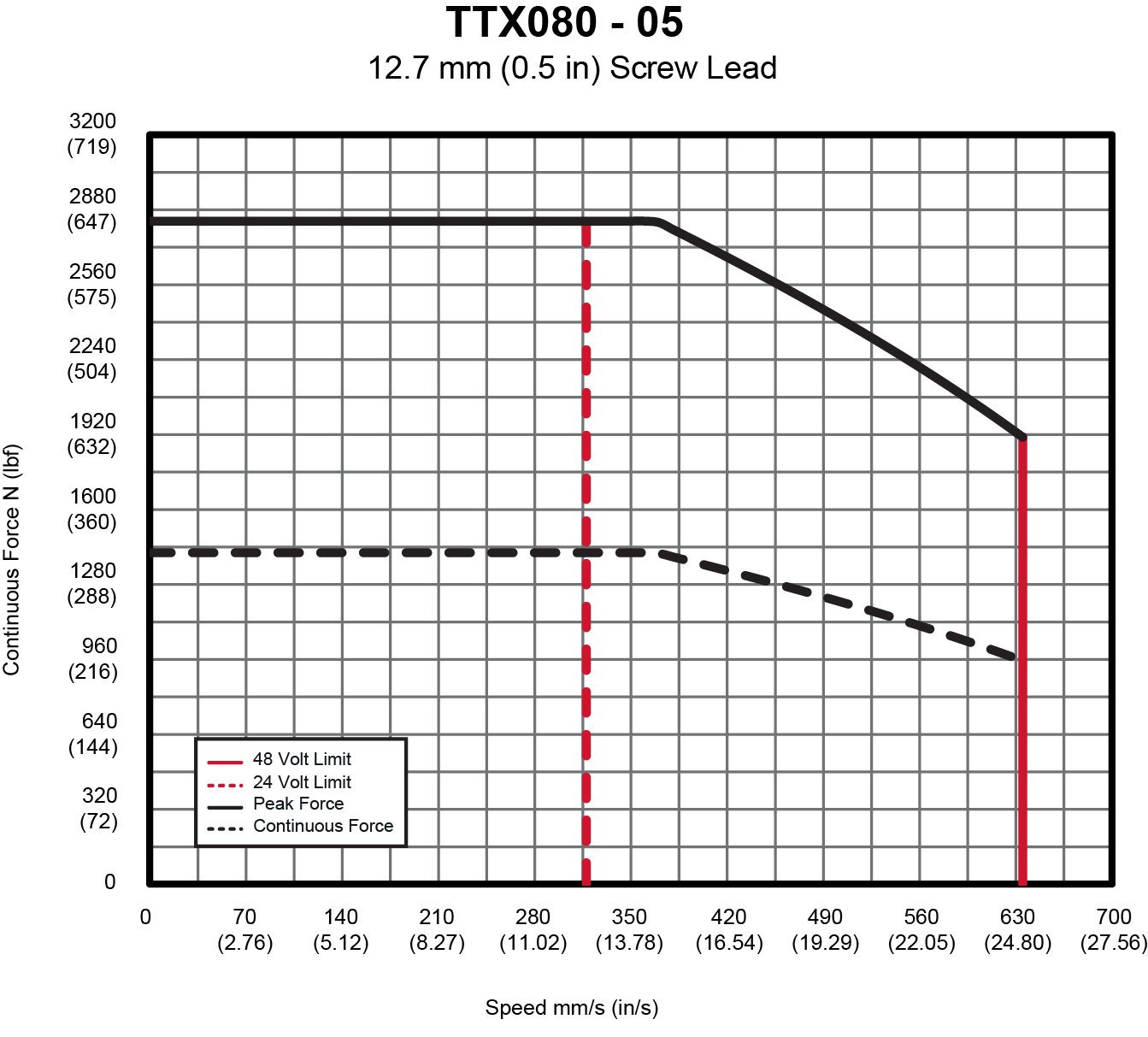

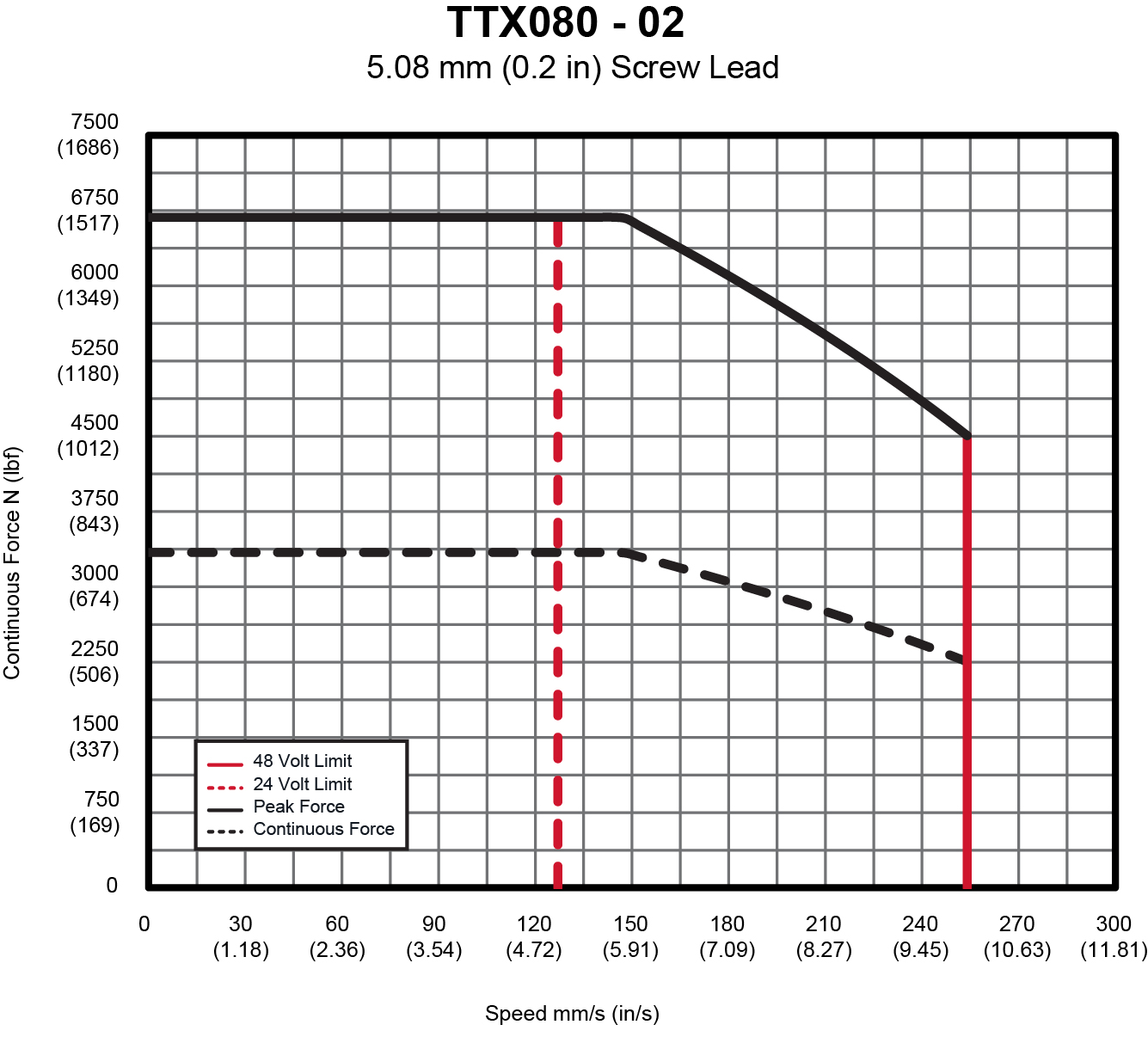

TTX080 AC Data CurvesOpen arrow














TTX080 Estimated Life Time CurvesOpen arrow

                                                            TTX080 - AC



                                                                                            TTX080 - DC



Product Literature

Catalogs and Brochures

Industrial - Exlar, Brochures/Catalogs
Industrial - Exlar, Brochures/Catalogs
This overview provides a brief summary of new standard products available from Exlar.
Industrial - Exlar, Brochures/Catalogs
Industrial - Exlar, Brochures/Catalogs
Industrial - Exlar, Brochures/Catalogs
Show Resources

Actuator Technical Data

Manuals and Technical Tips - Close attention is required to the electrical installation and the system design to avoid hazards either in normal operation or in the event of equipment malfunction.

Industrial - Exlar, Software & Downloads
Industrial - Exlar, Manuals
Industrial - Exlar, Software & Downloads
Industrial - Exlar, Manuals
Industrial - Exlar, Manuals
Industrial - Exlar, Manuals
Industrial - Exlar, Actuator Technical Tips
Industrial - Exlar, Manuals
Show Resources

Videos

Industrial - Exlar, Product Videos
Our Automotive Factory Floor Solutions animation shows our FTX, GTX, GTW, and TTX actuators and where they can help factories worldwide.
Industrial - Exlar, Product Videos
Learn how we build our actuators
Industrial - Exlar, Product Videos
Exlar® actuators from Curtiss-Wright are an industry leader in electric actuation. Our research, pride, and creativity shine in this short video as we highlight our top product lines.
Industrial - Exlar, Product Videos
Ever wonder about the benefits of changing your system from hydraulic cylinders to electric actuation. We have the information you need.
Show Resources

Find more resources in our InfoCenter.

How can we help?

Can the Tritex II linear actuators replace hydraulic cylinders?Arrow
Tritex actuators have similar capabilities as a comparably sized hydraulic cylinders but without the cost or maintenance issues. High force, fast speeds, and precise movements make it a superior substitute for hydraulic applications
Does the AC Linear Actuator make an ideal hydraulic replacement?Arrow
Tritex actuators have the same capabilities as a hydraulic equivalent but without the cost or maintenance issues. High force, fast speeds, and precise movements make it a superior substitute for hydraulic applications.
Is the Tritex Series an Industry 4.0 IoT actuator?Arrow
The Tritex II Series actuators are intelligent actuators incorporating on-board control and communications capabilities, enabling support for distributed control and IIoT architectures
  • Production Efficiencies (speed, up-time, duty cycle)
  • Environmental Sustainability (energy efficiency, reduction in hazardous materials)
  • Agile & Adaptable Processes (configurability, connectivity)
  • Fully Autonomous Operation (distributed control, predictive maintenance)
What are the primary benefits of using an electric actuator system over hydraulics?Arrow
Electric actuators offer high speed and force, are flexible and easily programmable for a variety of load conditions, have high accuracy and repeatability, are efficient, simple to install, require little maintenance, and are environmentally friendly.

By not using a hydraulic system, the user can eliminate oil leaks, reduce pollution, and improve worker safety. Electric actuators are also a non-toxic solution, especially in the food industry
What features does the Tritex II AC Linear Actuator have?Arrow
The AC-powered Tritex II actuators contain a 1.5 kW servo amplifier and an on-board motion controller. With standard features such as analog following for position, compound moves, move chaining, and individual force/torque control for each move, the Tritex II can solve many of your motion control challenges.
What temperature can the Tritex II AC Linear Actuator Hold?Arrow
The Tritex II with AC power electronics operates with maximum reliability over a broad range of ambient temperatures: -40˚C to +65˚C.
