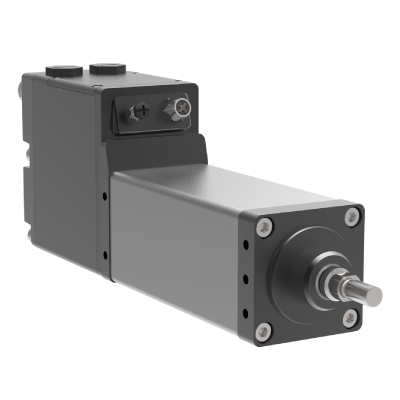

Tritex® TTX Series

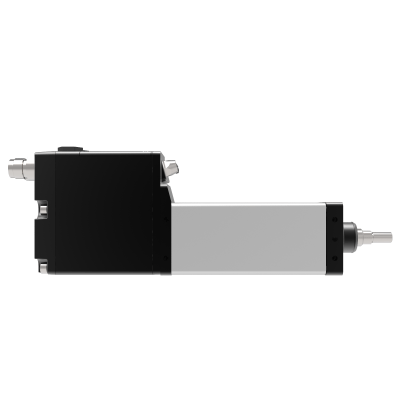

TTX horizontal

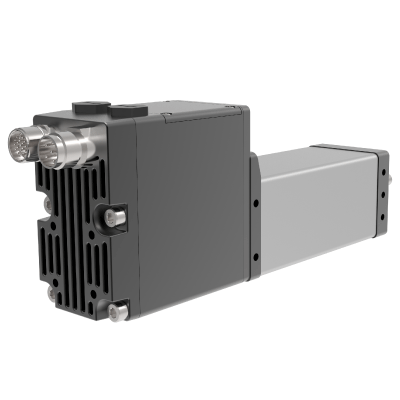

TTX back
previous
next

Tritex® TTX Series

Intelligent Drive | Motor | Actuator

Industrial - Exlar

Benefits
  • Reduced electrical cabinet space
  • Easier installation with less cabling issues
  • Increased control and accuracy
  • Less maintenance and downtime

Features
  • Decentralized intelligent servo actuator solution.
  • Easy-to-use, mechanical based configuration software.
  • Industry leading actuator life.
  • Environmentally sealed to IP66S
More Details
Overview Specifications Documentation FAQ Models & Drawings

Overview

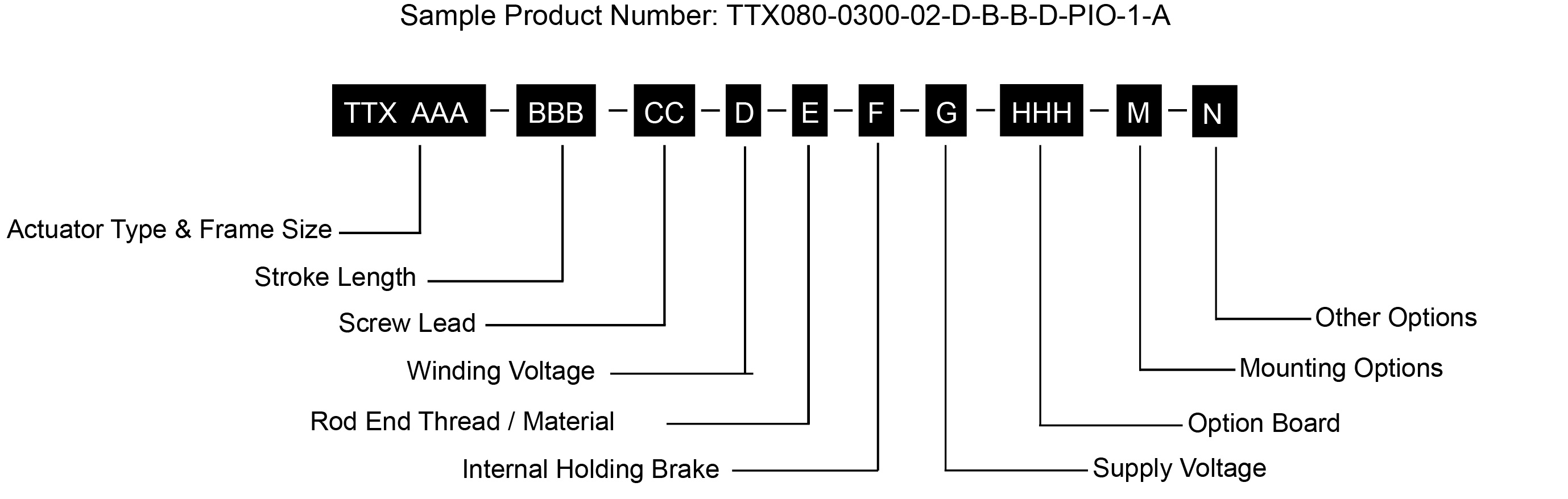

General Ordering Information

Tritex® TTX Series

Quick Data
ModelsFrame Size in (mm)Peak Force lbf (N)Continuous Force lbf (N)Max Speed in/s (mm/s)
TTX0602.36 (60)
DC -   1,038 (4,618)
DC - 552 (2,566)
DC - 33 (847)
TTX0803.15 (80)
AC - 2,650 (11,800)
DC -   2,270 (9,940)
AC - 1,325 (5,900)
DC - 1,115 (4,970)
AC - 25 (635)
DC - 20 (508)

Industry-Leading Intelligent Electric Actuator

Built on the unique GTX Series platform, the smart Tritex TTX Series linear actuators integrate a servo drive / controller, brushless servo motor, and an inverted roller screw actuator in one compact, environmentally sealed package. A complete decentralized solution eliminates much the control cabinet and cabling headaches associated with typical centralized control architectures, speeding installation, and lowering total cost of ownership. The Tritex TTX Series makes an ideal solution for machine retrofits and single axis applications.


More Benefits

  • Powerful, easy to use software
  • Linear actuator with multi-position programmability and precise positioning
  • Industry standard Ethernet communication options (EtherNet/IP, PROFINET IO, and Modbus TCP)
  • Power density, durability and form factor of hydraulic actuators

Related Industries

Automotive

Automotive
Food & Beverage / Packaging

Food & Beverage / Packaging
Entertainment & Simulation

Entertainment & Simulation
Ground and Naval Defense

Ground and Naval Defense
Plastics

Plastics
Forestry

Forestry
Other Industries

Other Industries
Quick Data
Models:TTX060, TTX080
Frame Sizes:60 mm (2.36 in), 80 mm (3.14 in)
Stroke Length:100 mm (3.94 in ), 150 mm (6 in ) , 300 mm (12 in ), 450 mm (18 in)
Screw Leads:TTX060 - 2.54 mm (0.1 in), 5.08 mm (0.2 in), 10.16 mm (0.4 in)
TTX080 - 2.54 mm (0.1 in), 5.08 mm (0.2 in), 12.70 mm (0.5 in)
Linear Speed:Up to 635 mm/s (25 in/s) for AC and 508 mm/s (20 in/s) for DC
Continuous Force Capacity:Continuous force up to 5,897 N (1,326 lbf) for AC and 4,970 N (1,117 lbf) for DC
Standards/Ratings:CE, UKCA, RoHS, and UL Certifications, UL Class 180H insulation, IP66S

AAA = Actuator Frame Size
060 = 60 mm (2.36 in)
080 = 80 mm (3.15 in)

BBB = Stroke Length
080 = 80 mm  - TTX060 only
100 = 100 mm  - TTX080 only
150 = 150 mm
300 = 300 mm
450 = 450 mm - TTX080 only

CC = Screw Lead
01 =  2.54 mm (0.10 in)
02 =  5.08 mm (0.20 in)
04 = 10.2 mm (0.40 in) - TTX060 only
05 = 12.7 mm (0.50 in) - TTX080 only

D = Winding Voltage
4 = 230 Vac Max - TTX080 only
D = 48 Vdc Max

E = Rod End Thread
A = Male Metric
B = Female Metric2
C = Male Metric, Splined2
D = Female Metric, Splined2
F = Female Standard2
G = Male Standard, Splined2
H = Female Standard, Splined2
L = Female Metric, 17-4 Stainless2
M = Male Standard2
R = Male Metric, 17-4 Stainless2
V = Female Standard, 17-4 Stainless2
W = Male Standard, 17-4 Stainless2

F = Internal Holding Brake
N = No Brake
B = Internal Holding Brake, Electrically Released

G = Amplifier Voltage
A = 230 Vac 1-ph Max Input
D = 48 Vdc Max Input

HHH = Option Boards
SIO = Standard I/O
IA4 = 4-20 mA Analog I/O
EIP = SIO plus EtherNet/IP w/M12 connector
PIO = SIO plus PROFINET IO w/M12 connector
TCP = SIO plus Modbus TCP w/M12 connector

M = Mounting Options
N = None
1 = Front Flange, Metric
3 = Tapped Face, Metric
5 = Rear Clevis, Metric
F = Front Flange, Standard2
C = Rear Clevis, Standard2

N = Accessory Options
N = None
A = Anti-Rotate Assembly
L = Limit Switch Housing / Anti-Rotate Assembly1


NOTES:
1. Switches sold separately
2. Available option. May add lead time.

* Some options are not available with every configuration. For options or specials not listed above contact your local Exlar representative.


Anti-Rotate, External
This assembly restricts the actuator output rod from rotating when the load is not held by another method. Shorter actuators have a single anti-rotation mechanism; longer lengths have a mechanism on both sides.

Front Mounting Flange, Metric
Front mounting flange, includes thru-holes for face-mounting

Limit Switch Housing/ Anti-Rotate Assembly
External travel switches indicate travel to the controller and are adjustable for either the home or end position. Switches not included.

Rear Clevis, Metric
Rear clevis mount, allows actuator to pivot while in motion

Splined Rod (Internal Anti-Rotate)
A ball spline shafting main rod with a ball spline nut that replaces the standard front seal and bushing assembly. This rod restricts rotation without the need for an external mechanism. The rod diameter will be the closest metric equivalent to our standard rod sizes. Since this option is NOT sealed, it is not suitable for environments in which contaminants may enter the actuator.

Stainless Steel Rod Option
All thread options on the GTX product line are available in 17-4 stainless steel. This option provides improved corrosion resistance for the main rod of the actuator. This option can be beneficial in applications where the rod could be exposed to harsh chemicals or outdoor environments.

Tapped Face, Metric
Tapped mounting holes in front flange face, allows face-mounting of actuator

Print

|

Back to top

Product Specifications

TTX060 TTX080
TTX060 Performance SpecificationsOpen arrow

TTX060 Mechanical Specifications

  STROKE MM (IN) SCREW LEAD MM (IN) CONTINUOUS FORCE RATING N (LBF) PEAK FORCE RATING N (LBF) MAX VELOCITY MM/S (IN/S) DYNAMIC LOAD RATING N (LBF) ARMATURE INERTIA KG-M^2 (IN-LB-S^2) MAXIMUM CONTINUOUS INPUT CURRENT
      D (Vdc) D (Vdc) D (Vdc)     D (Vdc) Arms
TTX060-080-01 80 (3.15) 2.54 (0.1) 2,566 (577) 4,618 (1,038) 202 (8.3) 9,230 (2,075) 0.00007367 (0.000652) 18.0
TTX060-080-02 5.08 (0.2) 1,363 (306) 2,454 (552) 423 (16.7) 6,850 (1,540)
TTX060-080-04 10.16 (0.4) 722 (162) 1,299 (292) 847 (33.3) 5,471 (1,230)
TTX060-150-01 150
(5.9)		 2.54 (0.1) 2,566 (577) 4,618 (1,038) 202 (8.3) 9,230 (2,075) 0.00008689 (0.000769)
TTX060-150-02 5.08 (0.2) 1,363 (306) 2,454 (552) 423 (16.7) 6,850 (1,540)
TTX060-150-04 10.16 (0.4) 722 (162) 1,299 (292) 847 (33.3) 5,471 (1,230)
TTX060-300-01 300
(11.8)		 2.54 (0.1) 2,566 (577) 4,618 (1,038) 202 (8.3) 9,230 (2,075) 0.00011537 (0.001021)
TTX060-300-02 5.08 (0.2) 1,363 (306) 2,454 (552) 423 (16.7) 6,850 (1,540)
TTX060-300-04 10.16 (0.4) 722 (162) 1,299 (292) 847 (33.3) 5,471 (1,230)

Specifications subject to change without notice.
Test data derived using NEMA recommended aluminum heatsink 10" x 10" x 3/8" at 25 °C ambient.
Maximum velocities listed at maximum voltages



TTX060 Weights

Description

Weight kg (lb)

TTX060-080

3.64 (8.0)

TTX060-150

4.13 (9.09)

TTX060-300

5.20 (11.43)

Brake Adder

0.65 (1.42)

Front Flange (1)

0.4 (0.89)

Tapped Face (3)

0.25 (.54)

Rear Clevis (5)

0.21 (0.46)

Imperial Flange (F)

0.3 (0.67)

Imperial Clevis (C)

0.33 (0.72)

Anti Rotate (80 mm stroke)

0.46 (1.0)

Anti Rotate (150 mm stroke)

0.54 (1.2)

Anti Rotate (300 mm stroke)

0.72 (1.6)

Limit Switch Assembly (80 mm stroke)

0.67 (1.5)

Limit Switch Assembly (150 mm stroke)

0.81 (1.8)

Limit Switch Assembly (300 mm stroke)

1.11 (2.5)




TTX060 Brake Specifications

Brake Holding Torque (minimum)

Nm

2.5

lbf-in

22

Brake Voltage

Vdc

24 (-10%/+6%)

Nominal Brake Current at 24 Vdc

A

0.46

Brake Engage/Disengage Time (typical)

ms

10/25

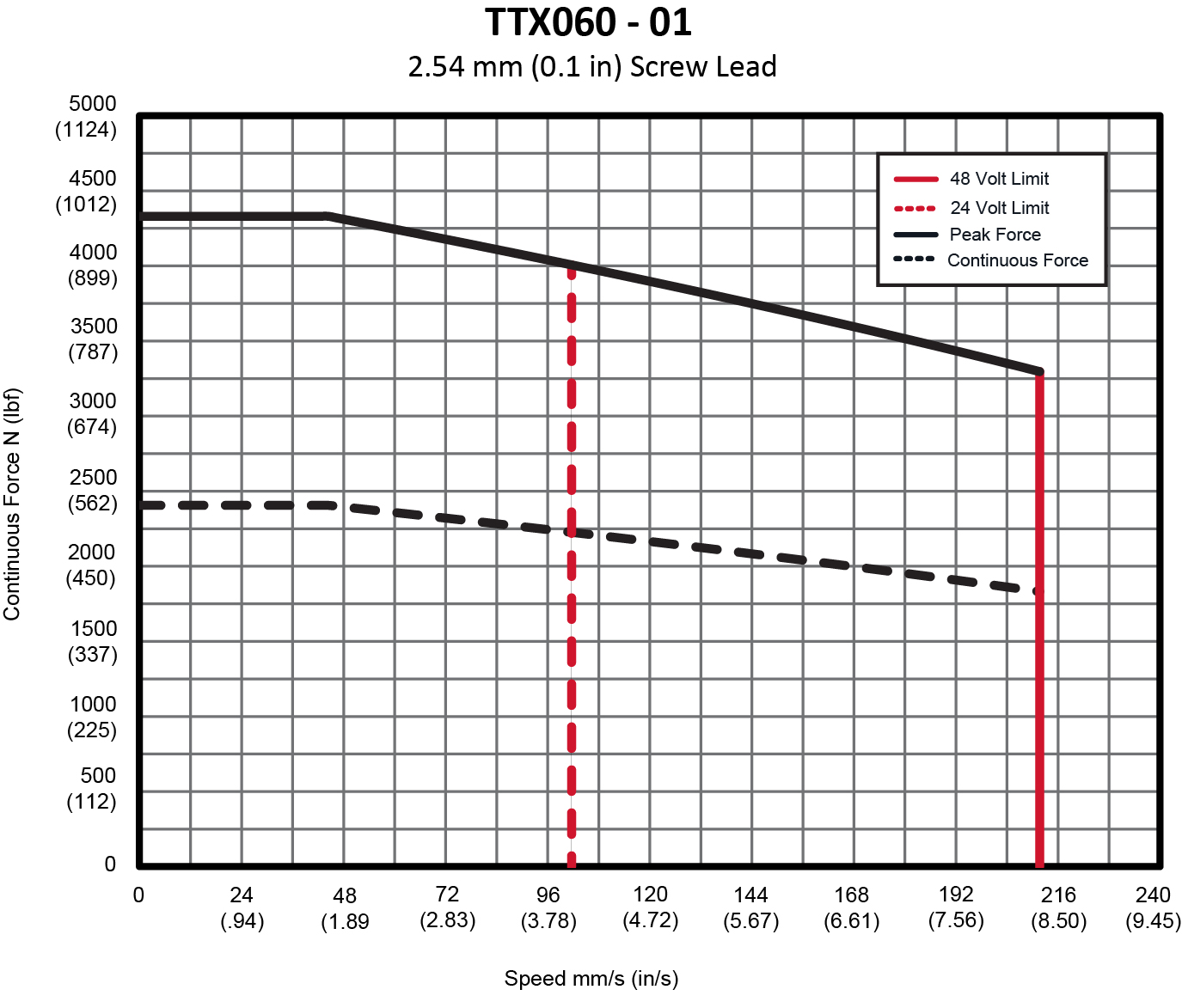

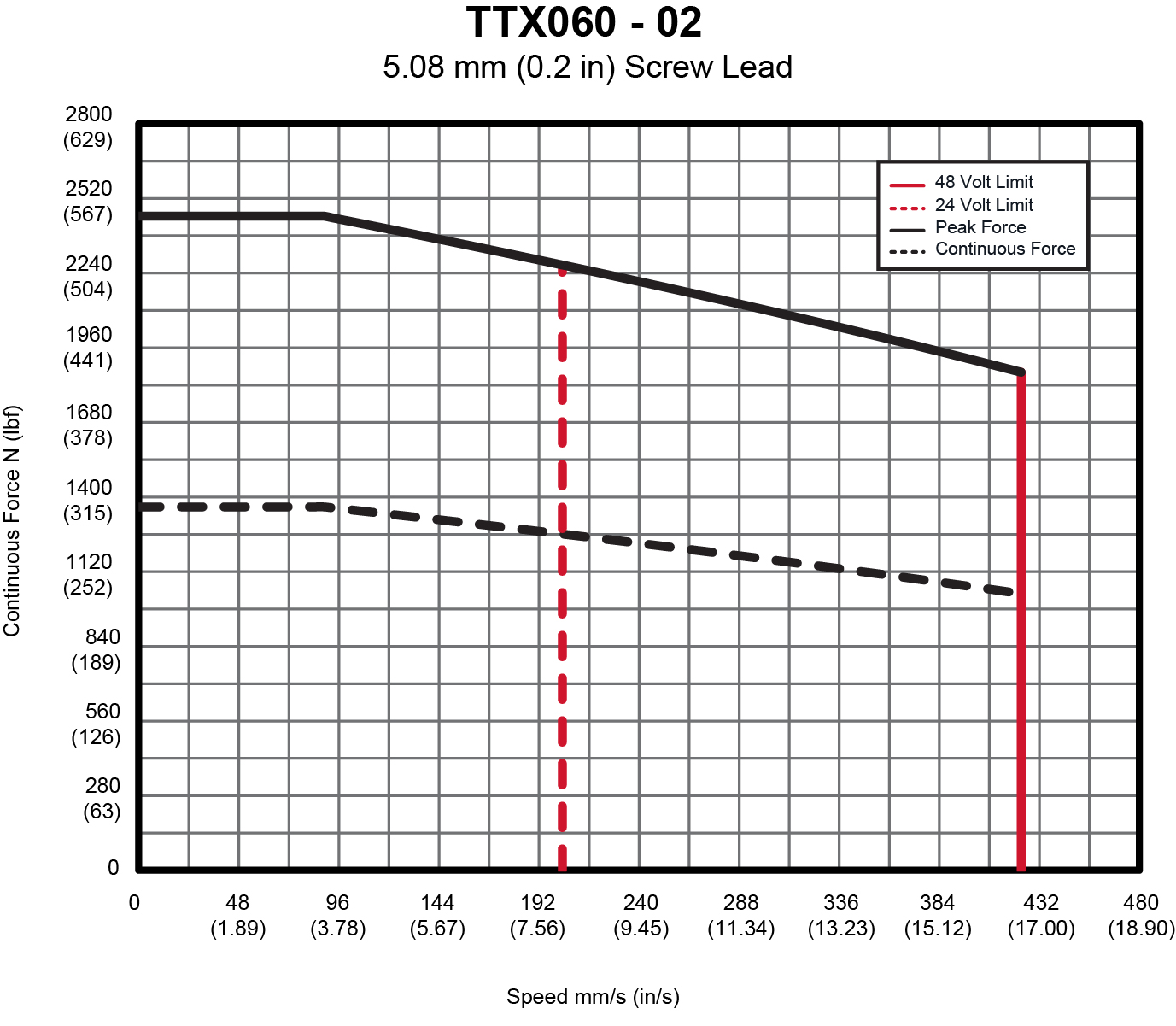

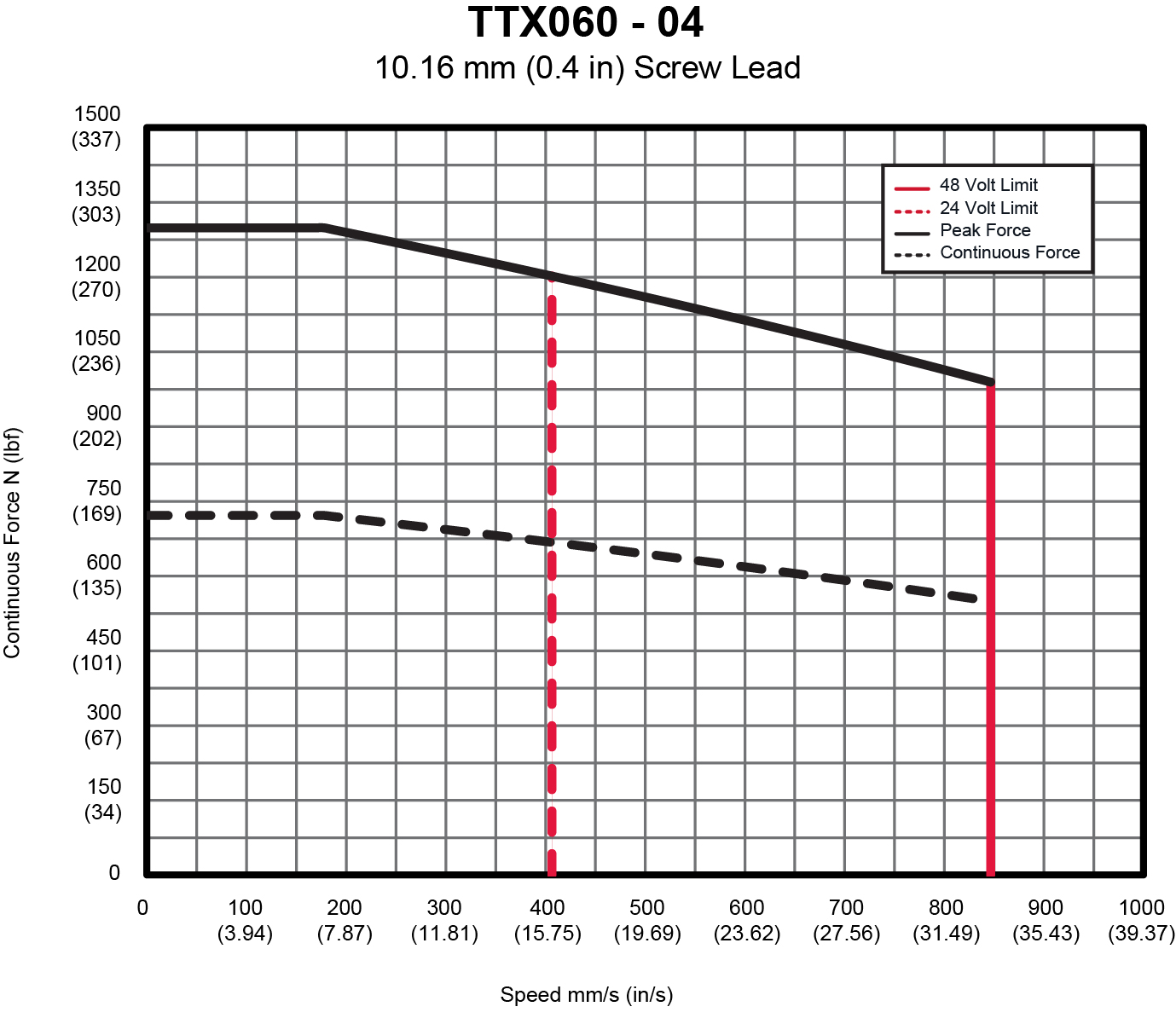

TTX060 Data CurvesOpen arrow

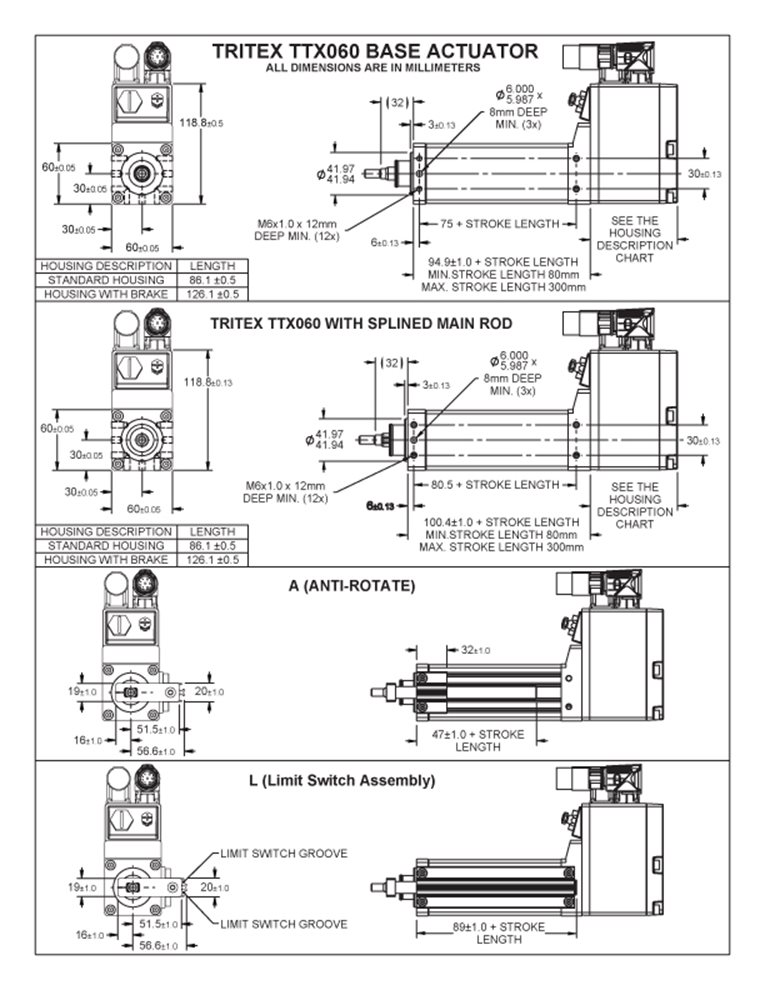

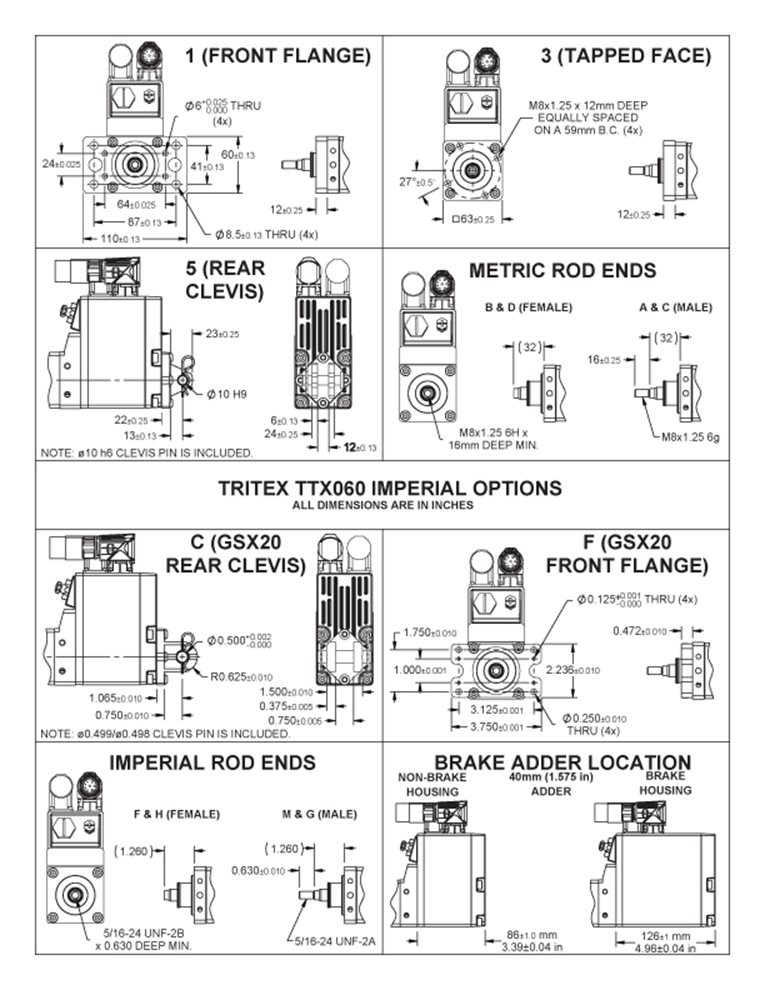

TTX060 Dimensional DrawingsOpen arrow

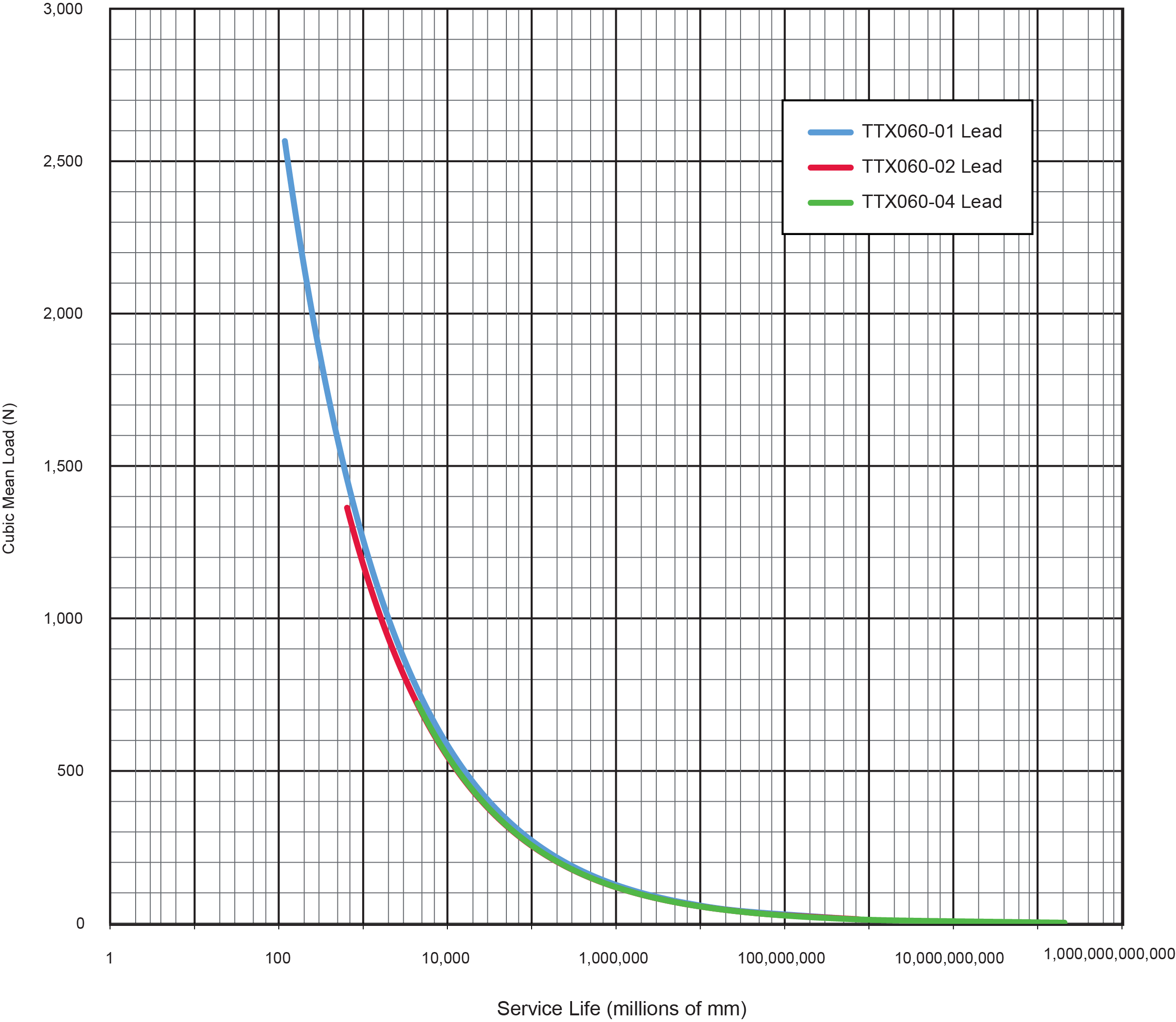

TTX060 Estimated Life Time CurvesOpen arrow
TTX080 Performance SpecificationsOpen arrow

TTX080 Mechanical Specifications

  STROKE MM (IN) SCREW LEAD MM (IN) CONTINUOUS FORCE RATING N (LBF) PEAK FORCE RATING N (LBF) MAX VELOCITY MM/S (IN/S) DYNAMIC LOAD RATING N (LBF) ARMATURE INERTIA KG-M^2 (IN-LB-S^2) MAXIMUM CONTINUOUS INPUT CURRENT
Specifications subject to change without notice. Test data derived using NEMA recommended aluminum heatsink 10" x 10" x 3/8" at 25°C ambient. Maximum velocities listed at maximum voltages
      4 (Vac) D (Vdc) 4 (Vac) D (Vdc) 4 (Vac) D (Vdc)     A (Vac) Arms D (Vdc) Arms
TTX080-100-01 100 (3.9) 2.54 (0.1) 5,897 (1,326) 4,970 (1,117) 11,794 (2,651) 8,946 (2,011) 127 (5.0) 102 (4.0) 24,535 (5,516) 0.000340 (0.003013) 4.1 18
TTX080-100-02   5.08 (0.2) 3,342 (751) 2,816 (633) 6,683 (1,502) 5,069 (1,140) 254 (10.0) 203 (8.0) 25,798 (5,800) 0.000340 (0.003013) 4.1 18
TTX080-100-05   12.7 (0.5) 1,415 (318) 1,193 (268) 2,830 (636) 2,147 (483) 635 (25.0) 508 (20.0) 21,795 (4,900) 0.000340 (0.003013) 4.1 18
TTX080-150-01 150 (5.9) 2.54 (0.1) 5,897 (1,326) 4,970 (1,117) 11,794 (2,651) 8,946 (2,011) 127 (5.0) 102 (4.0) 24,535 (5,516) 0.000369 (0.003267) 4.1 18
TTX080-150-02   5.08 (0.2) 3,342 (751) 2,816 (633) 6,683 (1,502) 5,069 (1,140) 254 (10.0) 203 (8.0) 25,798 (5,800) 0.000369 (0.003267) 4.1 18
TTX080-150-05   12.7 (0.5) 1,415 (318) 1,193 (268) 2,830 (636) 2,147 (483) 635 (25.0) 508 (20.0) 21,795 (4,900) 0.000369 (0.003267) 4.1 18
TTX080-300-01 300 (11.8) 2.54 (0.1) 5,897 (1,326) 4,970 (1,117) 11,794 (2,651) 8,946 (2,011) 127 (5.0) 102 (4.0) 24,535 (5,516) 0.000455 (0.004029) 4.1 18
TTX080-300-02   5.08 (0.2) 3,342 (751) 2,816 (633) 6,683 (1,502) 5,069 (1,140) 254 (10.0) 203 (8.0) 25,798 (5,800) 0.000455 (0.004029) 4.1 18
TTX080-300-05   12.7 (0.5) 1,415 (318) 1,193 (268) 2,830 (636) 2,147 (483) 635 (25.0) 508 (20.0) 21,795 (4,900) 0.000455 (0.004029) 4.1 18
TTX080-450-01 450 (17.7) 2.54 (0.1) 5,897 (1,326) 4,970 (1,117) 11,794 (2,651) 8,946 (2,011) 127 (5.0) 102 (4.0) 24,535 (5,516) 0.000541 (0.004790) 4.1 18
TTX080-450-02   5.08 (0.2) 3,342 (751) 2,816 (633) 6,683 (1,502) 5,069 (1,140) 254 (10.0) 203 (8.0) 25,798 (5,800) 0.000541 (0.004790) 4.1 18
TTX080-450-05   12.7 (0.5) 1,415 (318) 1,193 (268) 2,830 (636) 2,147 (483) 635 (25.0) 508 (20.0) 21,795 (4,900) 0.000541 (0.004790) 4.1 18





TTX080 Weights

DESCRIPTION WEIGHT KG (LB)
TTX080-100 5.5 (12.2)
TTX080-150 6.2 (13.5)
TTX080-300 8.0 (17.6)
TTX080-450 9.8 (21.6)
Brake Adder 1.1 (2.5)
Front Flange (1) 1.0 (2.2)
Tapped Face (3) 0.6 (1.2)
Rear Clevis (5) 0.4 (0.8)
Imperial Flange (F) 0.8 (1.8)
Imperial Clevis (C) 0.8 (1.7)
Anti Rotate (100 mm stroke) 0.5 (1.1)
Anti Rotate (150 mm stroke) 0.6 (1.3)
Anti Rotate (300 mm stroke) 0.8 (1.8)
Anti Rotate (450 mm stroke) 1.1 (2.4)
Limit Switch Assembly (100 mm stroke) 0.9 (1.9)
Limit Switch Assembly (150 mm stroke) 1.0 (2.3)
Limit Switch Assembly (300 mm stroke) 1.6 (3.5)
Limit Switch Assembly (450 mm stroke) 2.1 (4.7)



TTX080 Brake Specifications

Brake Holding Torque (minimum)

Nm

4.5

lbf-in

40

Brake Voltage

Vdc

24 (-10%/+6%)

Nominal Brake Current at 24 Vdc

A

0.5

Brake Engage/Disengage Time (typical)

ms

18/35

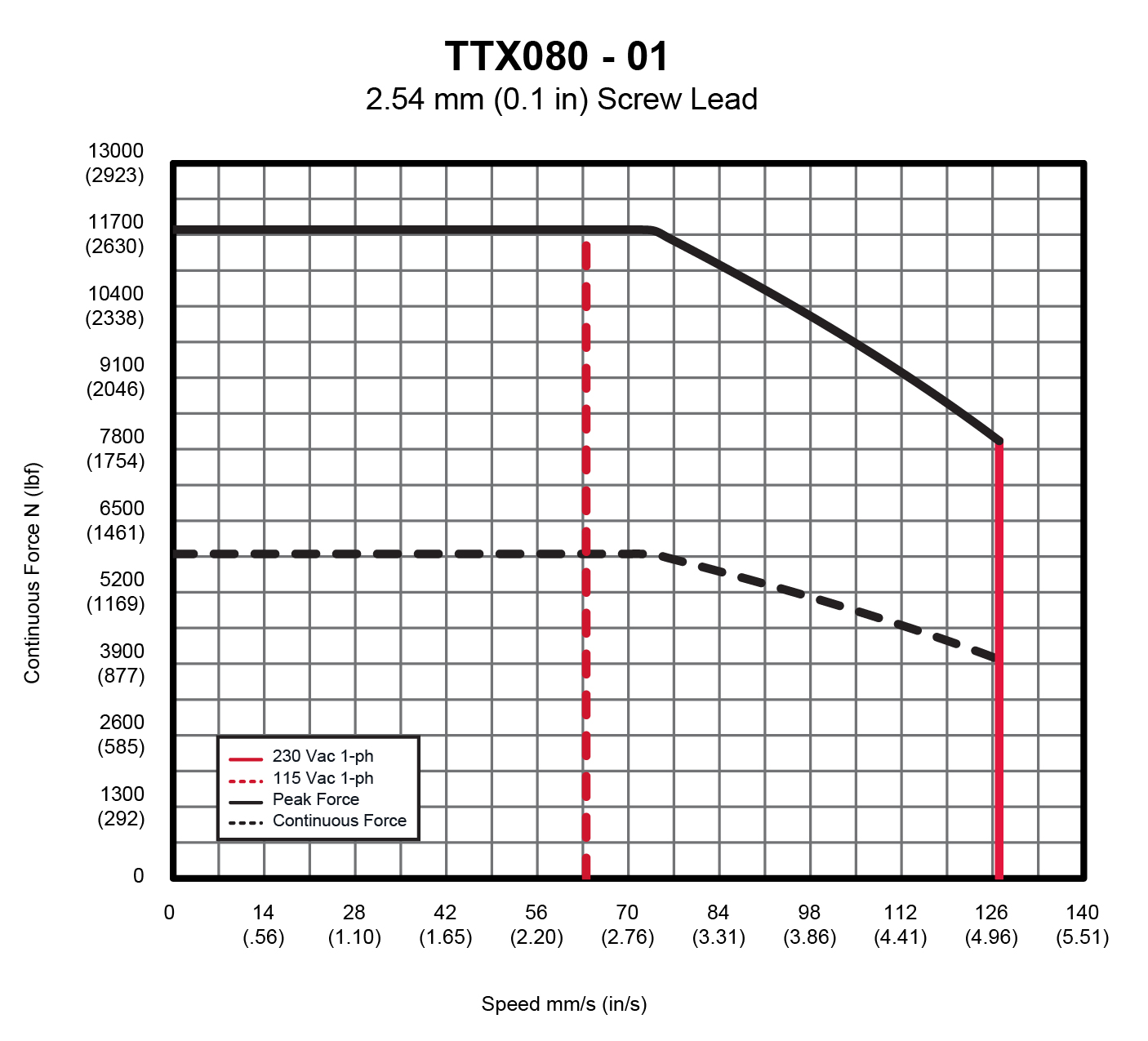

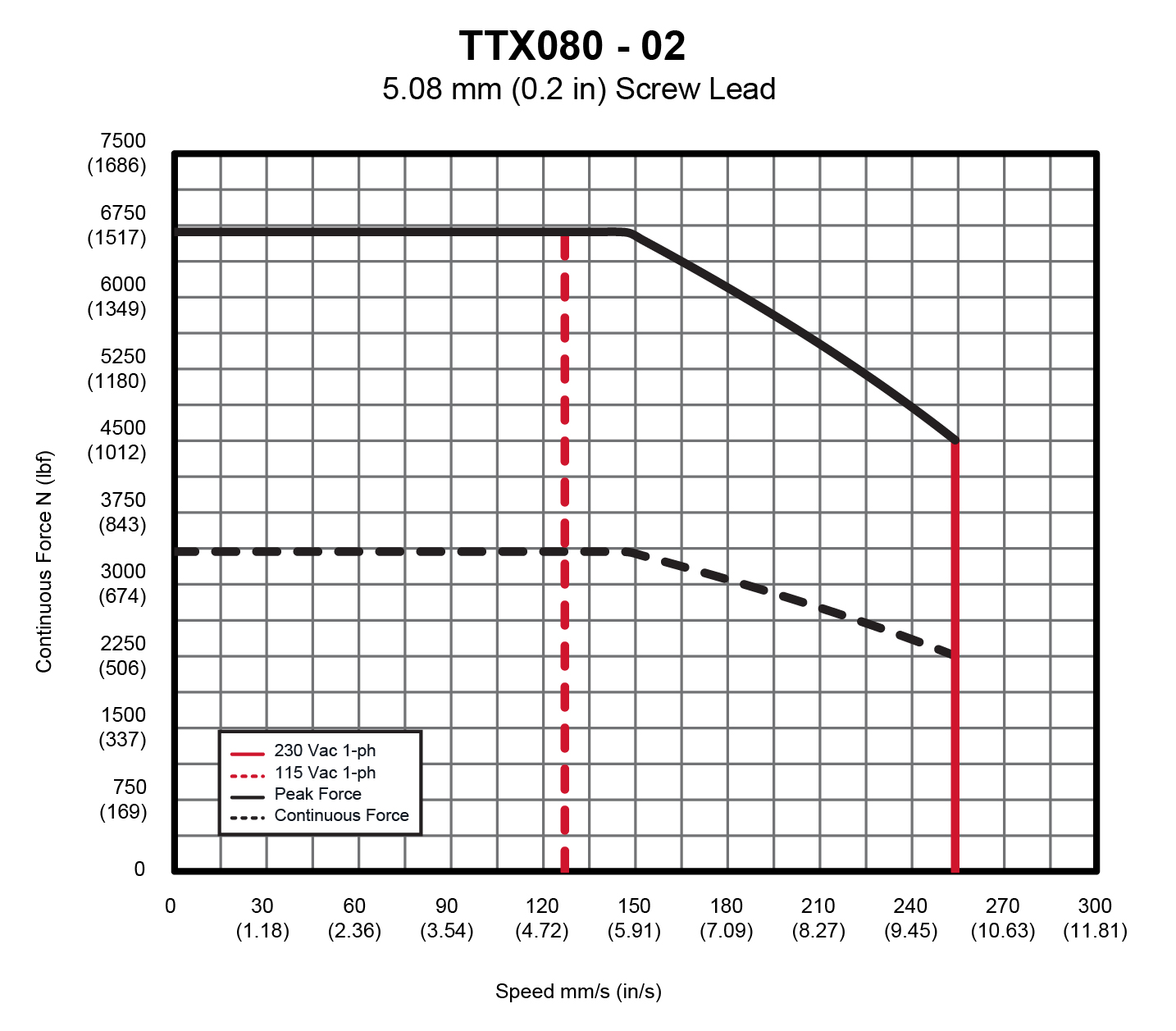

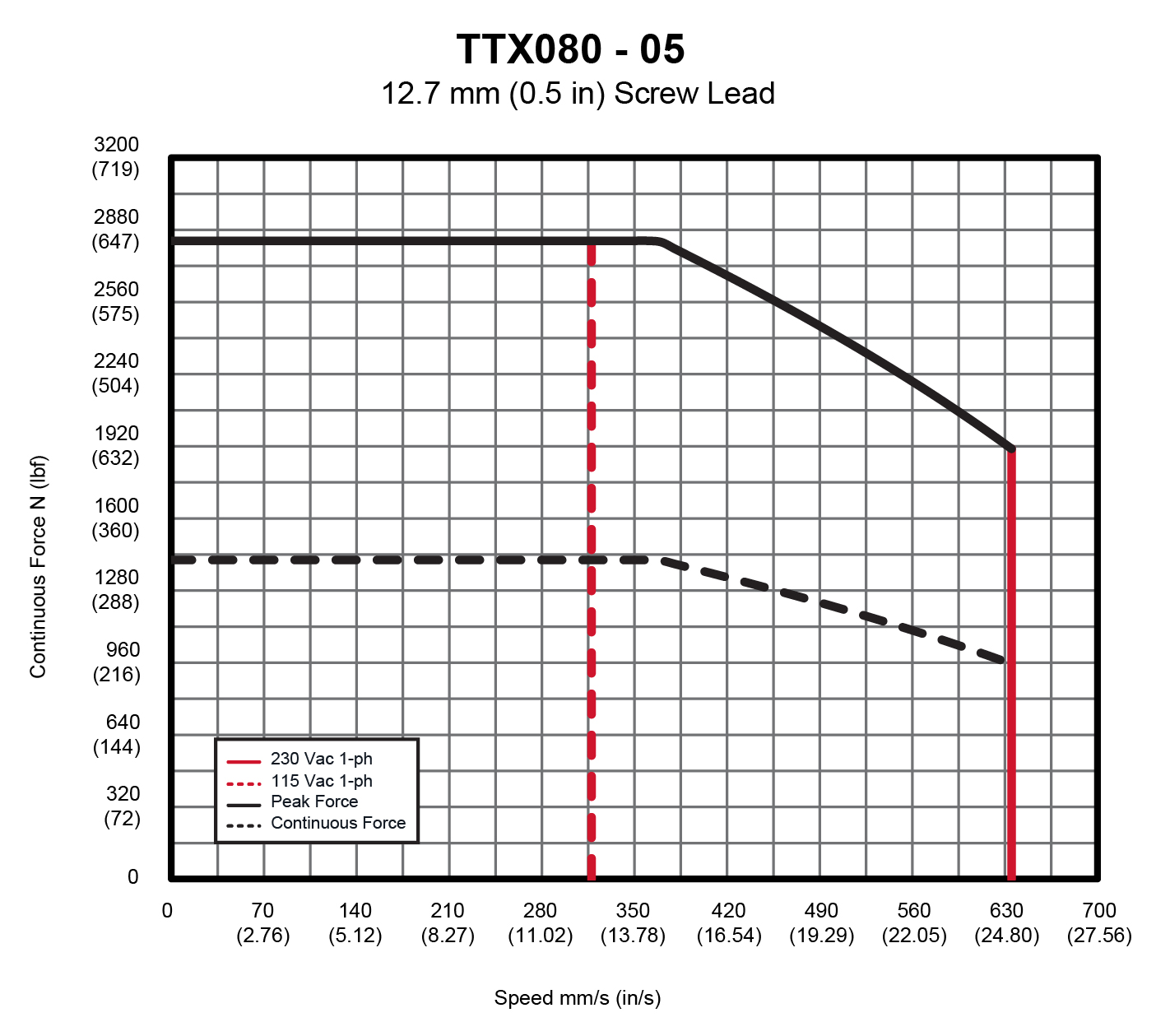

TTX080 AC Data CurvesOpen arrow

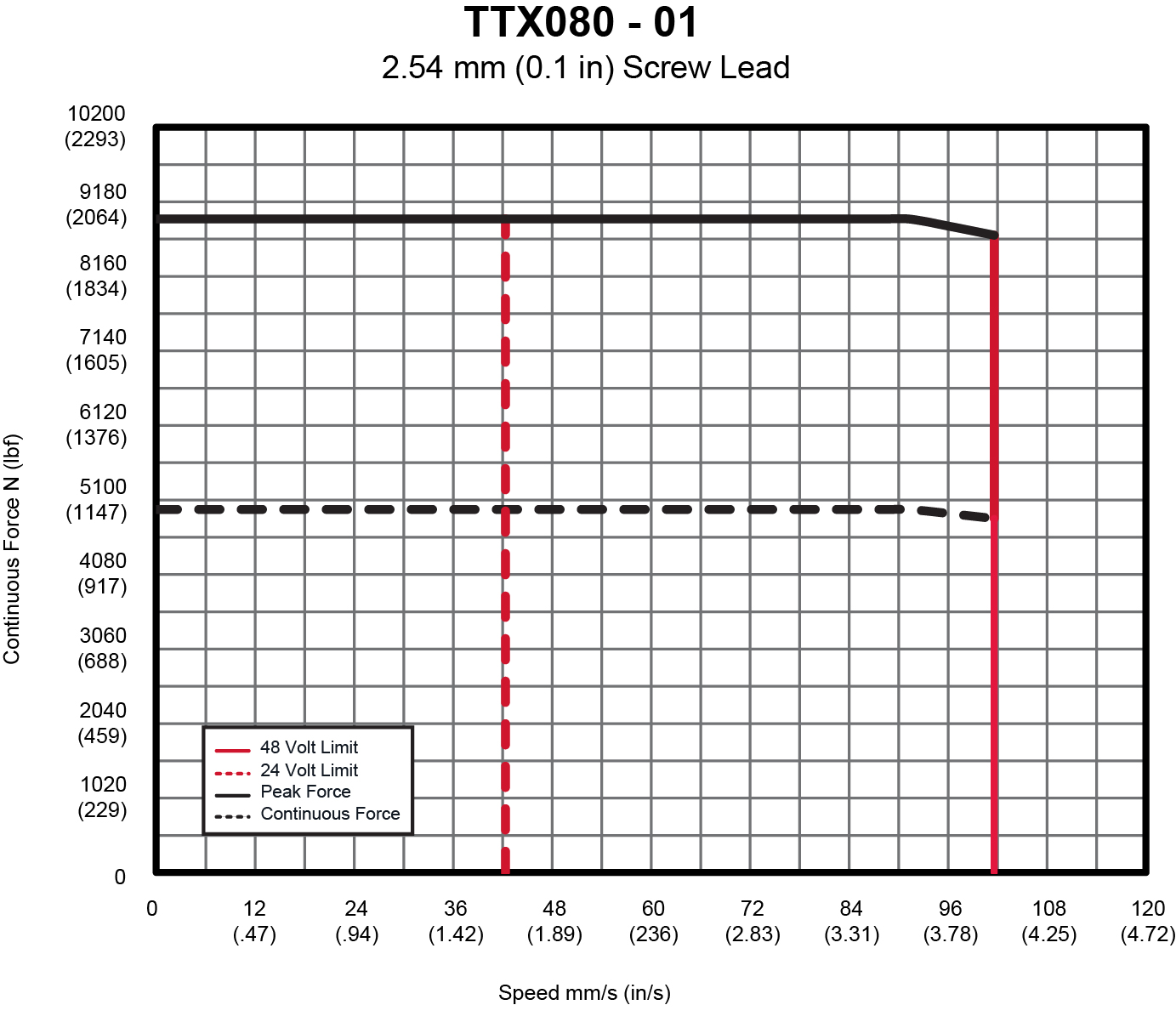

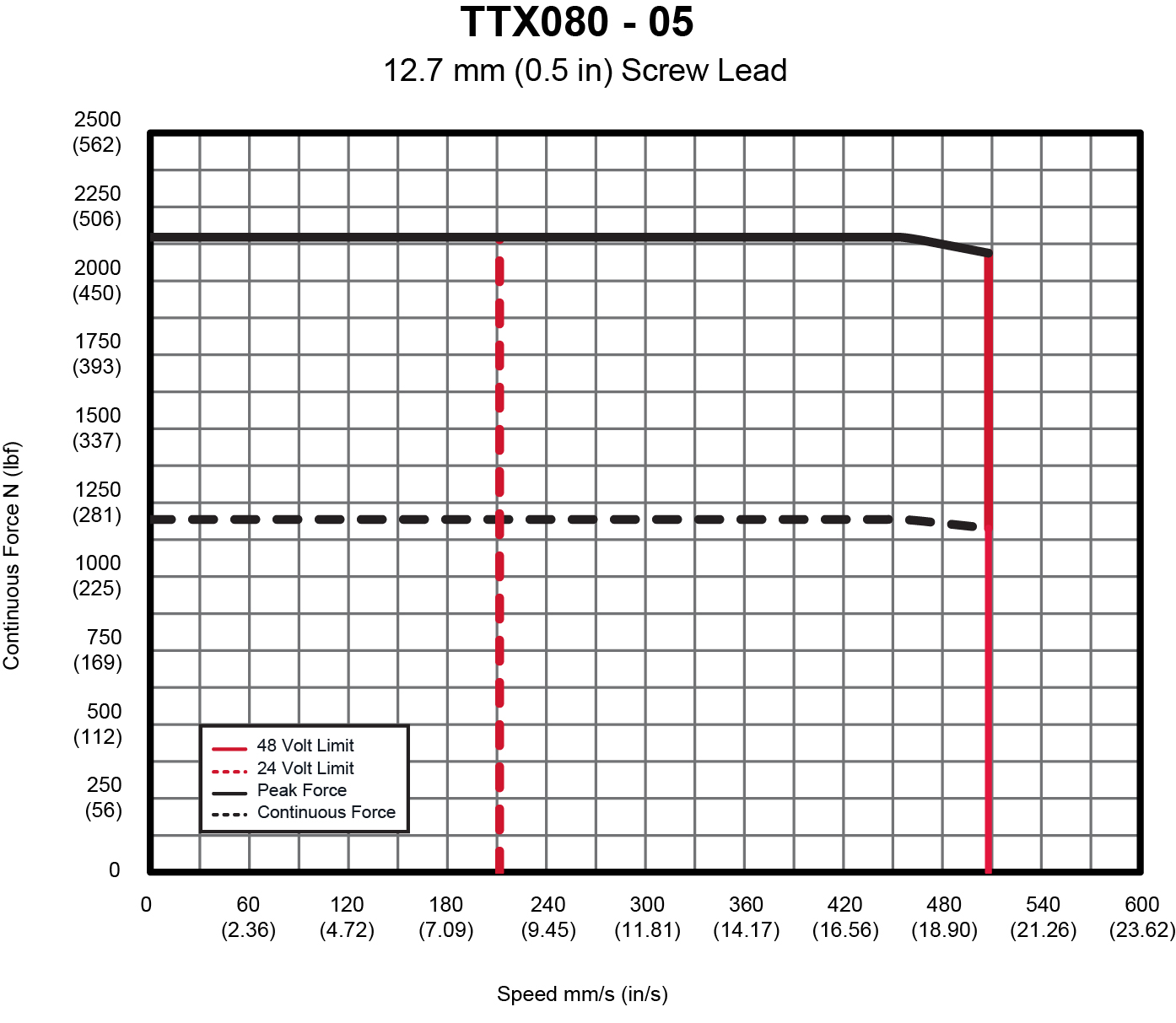

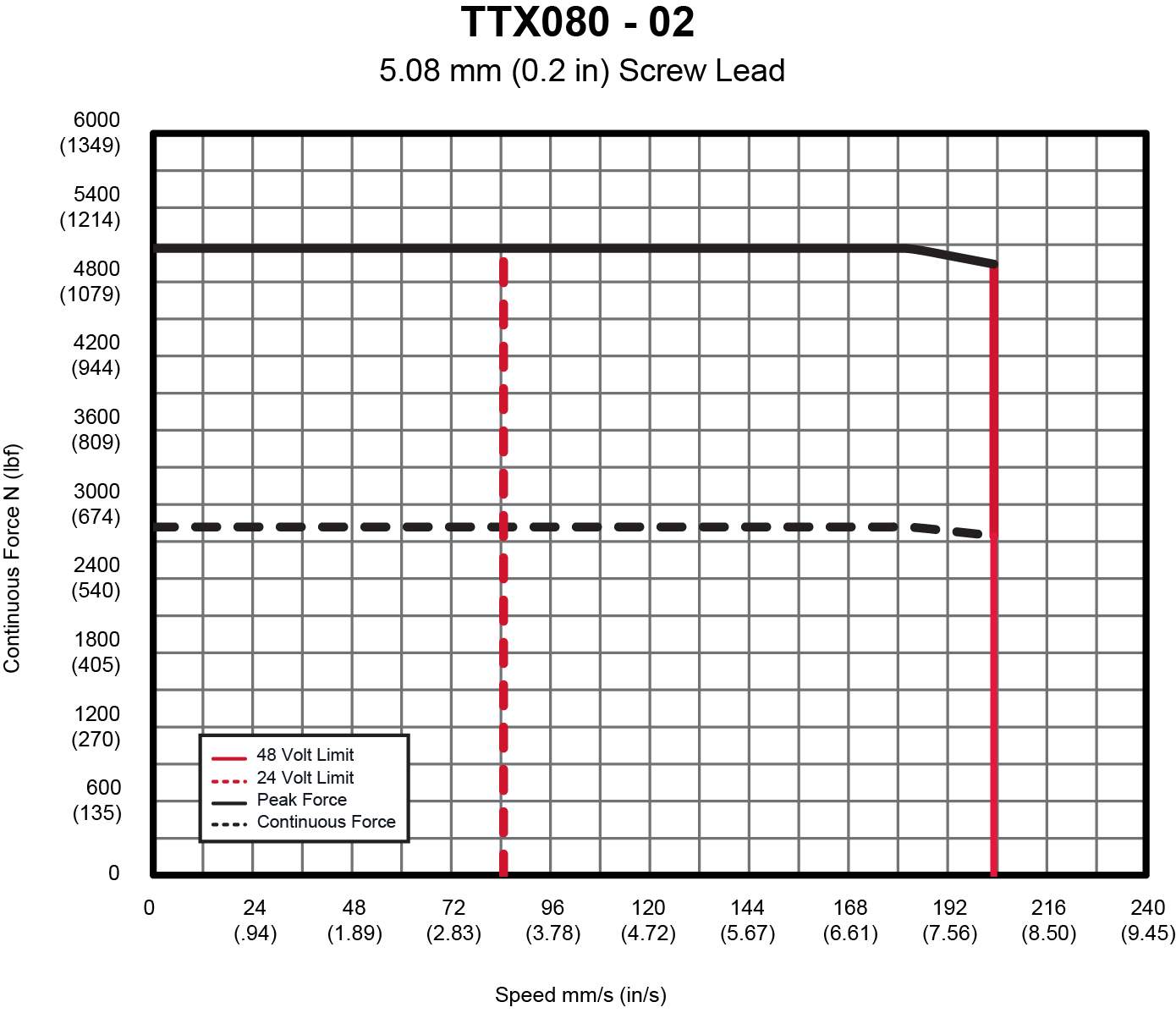

TTX080 DC Data CurvesOpen arrow

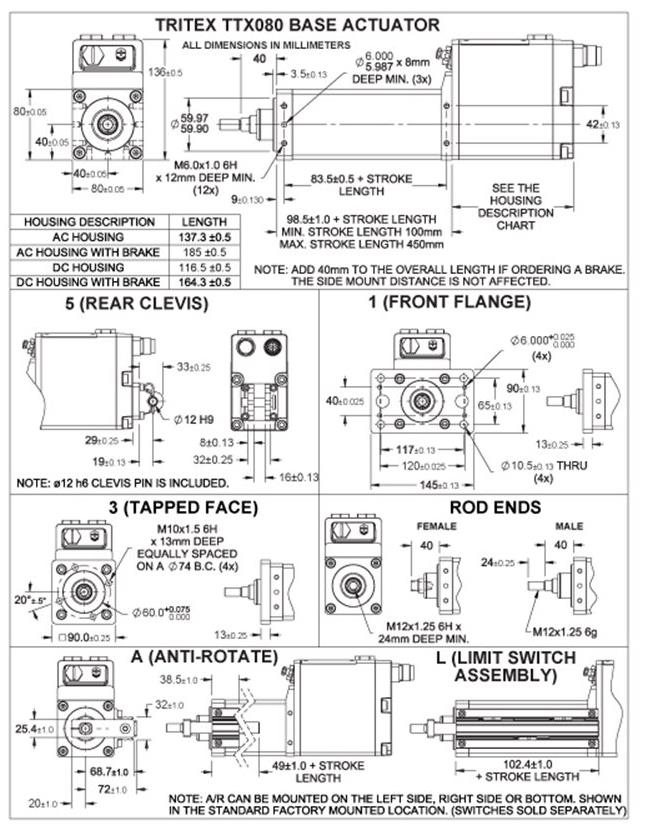

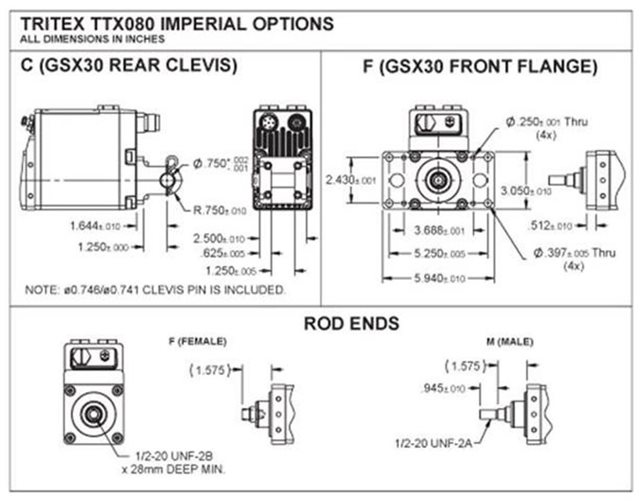

TTX080 Dimensional DrawingsOpen arrow

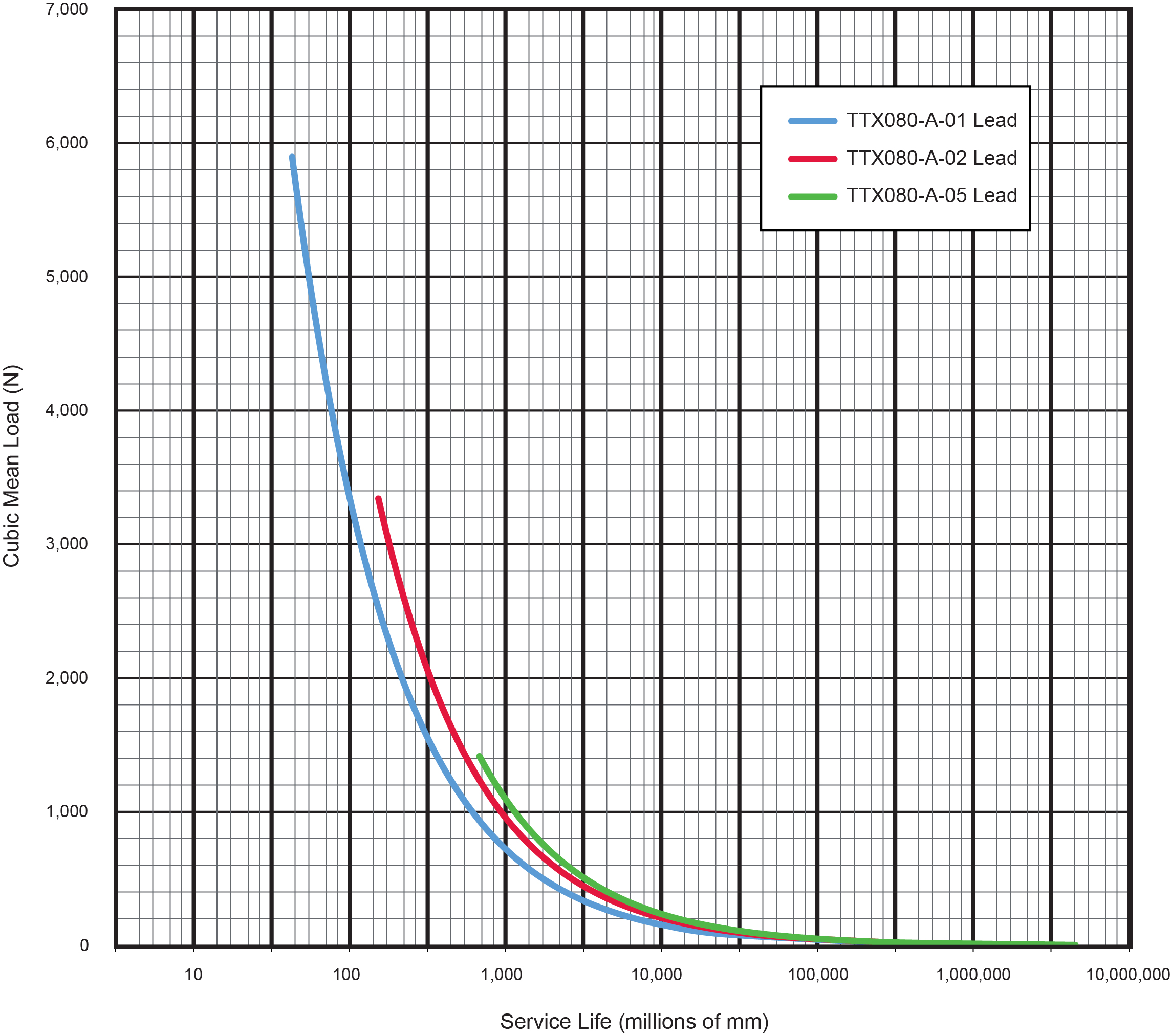

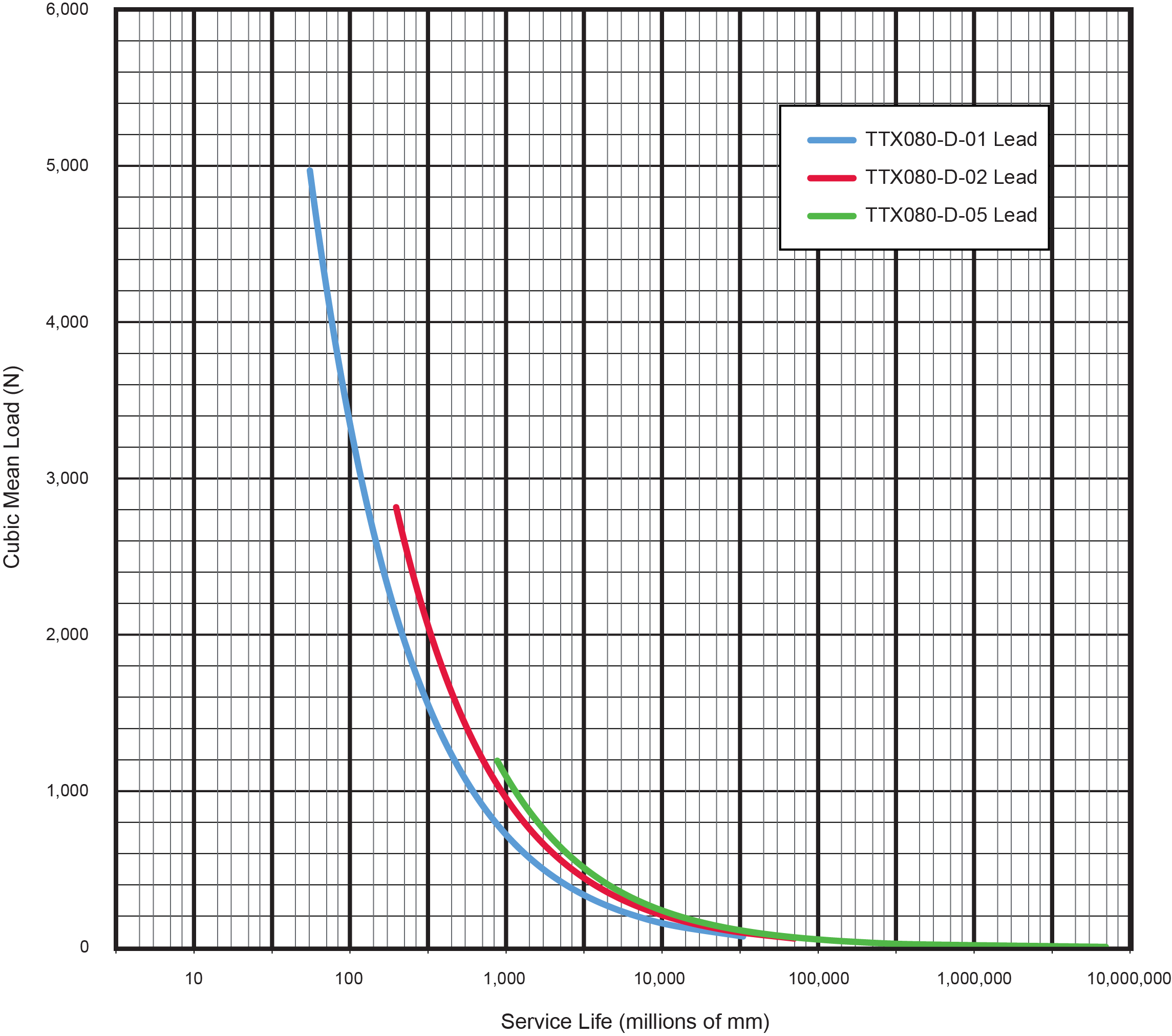

TTX080 Estimated Life Time CurvesOpen arrow
