SLM 系列旋转执行器
previous
next

SLM 系列旋转执行器

无刷伺服电机

Industrial - Exlar

  • 连续扭矩高达 69 Nm（612 lb-in）
  • 转速高达 5000 rpm
  • 高扭矩和小封装尺寸
  • 多种标准框架尺寸，适合大多数应用
  • 提供 1 类、2 分区选项
更多 Details
概述 规格 Documentation 模型和图纸

Overview

General 选项 Ordering Information

SLM 系列旋转执行器

快速数据
型
框架尺寸（毫米）
最大连续扭矩 Nm （lbf-in）
最大转速转速
SLM06060 (2.36)
1.73 (15.3)5000
SLM07575 (2.95)
4.29 (37.9)4000
SLM09090 (3.54)
6.3 (55.7)4000
SLM115115 (4.53)
19.98 (176.9)3000
SLM142142 (5.59)
26.93 (238.3)2400
SLM180180 (7.10)
69.1 (611.6)2400

无刷伺服电机优点

采用紧凑型封装

的高扭矩 无刷伺服电机技术®提供高扭矩和小封装尺寸。 这些紧凑型电机提供 60 至 180 mm 的框架尺寸，1、2 或 3 个堆叠长度，采用 8 极配置，具有强大的冲击力。

标准配置包括：

  • 115、230、400 和 460 VAC; 24 和 48 VDC
  • 超大输出轴
  • 制动选件
  • 反馈配置适用于几乎任何伺服放大器
  • IP65S 密封标准
  • 定制 OEM 设计 提供


最大电机性能

创新的 T-LAM™ 分段层压定子设计可在不增加尺寸的情况下提高功率。 每个段都包含单独的相位布线，以实现最大的电机性能。 坚固的绝缘、高矫顽力强度磁铁和完整的热灌封集成在一起，以创建更强大、更高效的电机。 采用相同尺寸的封装后，扭矩可提高 35% 至 70%。 此外，T-LAM 设计还具有 180H 级绝缘和 UL 认证。



其他无刷伺服电机优势

灵活的设计适用于各种应用
IP65S 环境密封标准
大多数伺服放大器
的嵌入式引线 密封的阳极氧化铝外壳，坚固耐用，使用寿命
长 多个框架尺寸，具有标准公制安装尺寸
定制轴、安装件、定子、 和外壳材料可用
耐用，高度坚固的设计，维护成本低
紧凑和高效设计 90% 以上

相关行业

食品和饮料/包装

食品和饮料/包装
娱乐/模拟

娱乐/模拟
快速数据
模型：
SLM060, SLM075, SLM090, SLM115, SLM142, SLM180
框架尺寸：
2, 4, 3, 3.5, 4.5, 5.5, 7 IN (60, 75, 90, 115, 142, 180MM)
连续转矩：
from 15 to 612 lbf-in (1 to 69 Nm)
最大速度：
2400, 3000, 4000, 5000 rpm
标准/评级：
UL IP65S standard, Class 180H insulation system

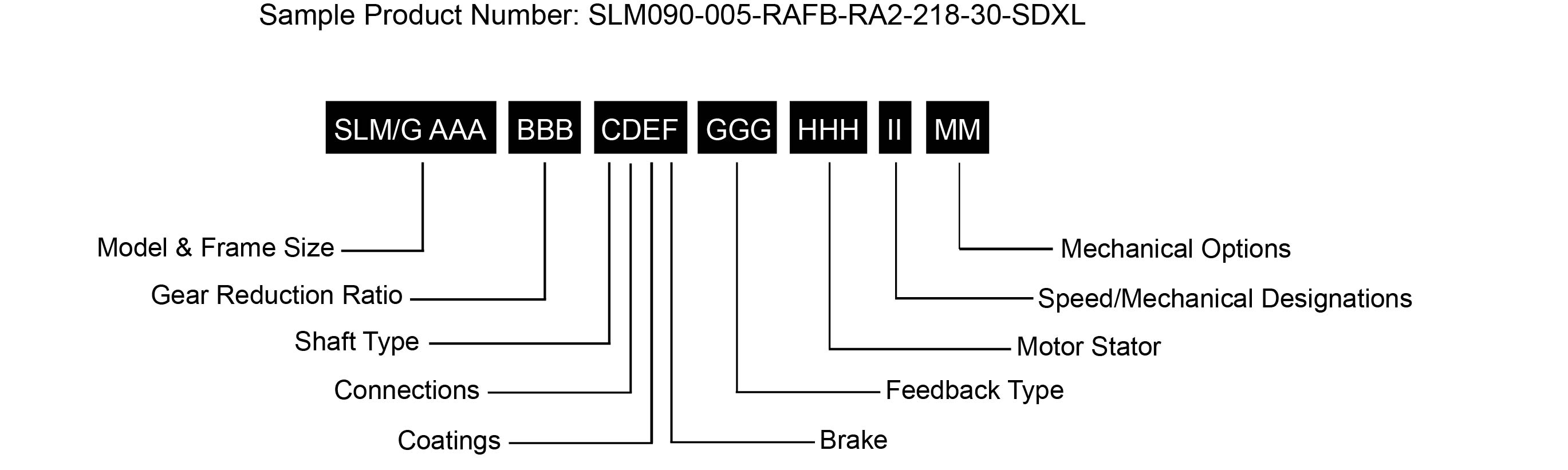

订购信息Arrow




G = Model Series
SLG  = SLG Series Servo Gear Motor
SLM = SLM Series Servo Motor (No Gear Reduction)

AAA = Frame Size
060 = 60 mm
075 = 75 mm
090 = 90 mm
115 = 115 mm
142 = 142 mm, (SLM only)
180 = 180 mm, (SLM only)

BBB = Gear Reduction Ratio
Blank = SLM
Single reduction ratio
004 = 4:1
005 = 5:1
010 = 10:1
Double reduction ratio (N/A on 075 mm)
016 = 16:1
020 = 20:1
025 = 25:1
040 = 40:1
050 = 50:1
100 = 100:1

C = Shaft Type
K = Keyed

D = Connections
I = Exlar standard M23 style
M = Manufacturer’s connector1

E = Coating Options
G = Anodized Aluminum (standard)

F = Brake Options
B = Brake
S = Standard no brake

GGG = Feedback Type
See catalog for detailed information.

HHH = Motor Stator – All 8 Pole2
115 Vrms
118 = 1 stack
218 = 2 stack
318 = 3 stack

230 Vrms
138 = 1 stack
238 = 2 stack
338 = 3 stack

400 Vrms
158 = 1 stack
258 = 2 stack
358 = 3 stack

460 Vrms
168 = 1 stack
268 = 2 stack
368 = 3 stack

II = Optional Speed and Mechanical Designations
24 = 2400 rpm, SLM142 & 180
30 = 3000 rpm, SLM/G115
40 = 4000 rpm, SLM075, SLM/G090
50 = 5000 rpm, SLM/G060


笔记:
1. 可用，如反馈类型中所述.
2. 有关电压、速度、功率和优化定子选项的说明，请参阅目录。

* 某些选项并非在每个配置中都可用。 对于上面未列出的选项或特价，请联系您当地的 Exlar 代表。
1 类 2 分区订购信息Arrow




SLM/G = Model Series
SLG = SLG Series Servo Gearmotor
SLM = SLM Series Servo Motor
(no gear reduction)

AAA = Motor Frame Size
075 = 75 mm
090 = 90 mm
115 = 115 mm
142 = 142 mm (SLM only)
180 = 180 mm (SLM only)

BBB = Gear Reduction Ratio
(leave blank for SLM Motor)
Single reduction ratio
004 = 4:1 Single Reduction
005 = 5:1 Single Reduction
010 = 10:1 Single Reduction

Double reduction ratio (N/A on 075 mm)
016 = 16:1 Double Reduction
020 = 20:1 Double Reduction
025 = 25:1 Double Reduction
040 = 40:1 Double Reduction
050 = 50:1 Double Reduction
100 = 100:1 Double Reduction

C = Shaft Type
K = Keyed
R = Smooth/round

D = Connections
T = Terminal box with NPT ports

E = Coating Options1
G = Exlar standard

F = Brake Options
B = Brake
S = Standard no brake

GGG = Feedback Type
See Engineered Product Catalog for details

H = Motor Stacks
1 = 1 stack magnets
2 = 2 stack magnets2
3 = 3 stack magnets2

I = Voltage Rating
1 = 115 Vrms
3 = 230 Vrms
5 = 400 Vrms
6 = 460 Vrms

J = Motor Poles
8 = 8 motor poles

KK = Motor Speed
24 = 2400 rpm, SLM142, SLM180
30 = 3000 rpm, SLM/G115
40 = 4000 rpm, SLM/G075, SLM/G090
50  = 5000 rpm, SLM/G060

MM= Mechanical Options
NI = Non-incendive construction required for Class 1, Division 2


笔记:
1. 这些外壳可能表明需要特殊材料的主杆或安装。
2. 115 Vrms 在 2 或 3 堆栈 SLM/G 或 3 堆栈 SLM/G090 上不可用。

* 某些选项并非在每个配置中都可用。 对于上面未列出的选项或特价，请联系您当地的 Exlar 代表。
SLM 系列旋转执行器 选项Open arrow

NI =非易燃选项
非易燃选项（I类第2部要求）

XM = 特殊电机
特殊电机选项应列为 XM，并且必须获得 Exlar 的批准。

XL = 特殊（非标准）润滑
型号中的 XL 选件指定了除 Exlar® 提供的标准（即美孚力富 SHC220）提供的润滑以外的某种形式的润滑。 特殊润滑剂包括其他润滑脂，如 JAX FG-2 食品级或美孚润滑脂 28。 另一个非标准选项是油冷

XF = 特殊反馈
特殊反馈选项应列为 XF，并且必须获得 Exlar 的批准。
Print

|

Back to top

Product 规格

SLM060 SLM075 SLM090 SLM115 SLM142 SLM180
SLM060 性能规格Open arrow

SLM/G060 Electrical and Mechanical Specifications

Motor Stacks   118 138 158 168 218 238 258 268 318 338 358 368
Voltage Rating Vrms 115 230 400 460 115 230 400 460 115 230 400 460
Speed @ Bus Voltage rpm 5000 5000 5000 5000 5000 5000 5000 5000 5000 5000 5000 5000
Sinusoidal Commutation Data
Continuous Motor Torque lbf-in 7.6 7.3 7 7 11.9 11.5 11 11.3 15 15.3 14.6 14.9
  Nm 0.86 0.83 0.79 0.79 1.34 1.3 1.25 1.28 1.7 1.73 1.65 1.69
Peak Motor Torque lbf-in 15.2 14.7 14 14 23.8 23 22.1 22.6 30 30.6 29.2 29.9
  Nm 1.72 1.66 1.58 1.58 2.69 2.6 2.49 2.55 3.39 3.46 3.3 3.38
Torque Constant (Kt) (+/– 10% @ 25˚C) lbf-in/A 2.5 5.2 7.5 9.5 2.5 5.2 8.6 10.1 2.5 5.3 8.8 10.1
  Nm/A 0.28 0.6 0.9 1.1 0.3 0.6 1 1.1 0.3 0.6 1 1.1
Continuous Current Rating A 3.4 1.6 1 0.8 5.4 2.5 1.4 1.2 6.6 3.2 1.9 1.6
Peak Current Rating A 6.9 3.1 2 1.6 10.8 4.9 2.9 2.5 13.2 6.5 3.7 3.3
O-PK Sinusoidal Commutation Data
Continuous Motor Torque lbf-in 7.6 7.3 7 7 11.9 11.5 11 11.3 15 15.3 14.6 14.9
  Nm 0.86 0.83 0.79 0.79 1.34 1.3 1.25 1.28 1.7 1.73 1.65 1.69
Peak Motor Torque lbf-in 15.2 14.7 14 14 23.8 23 22.1 22.6 30 30.6 29.2 29.9
  Nm 1.72 1.66 1.58 1.58 2.69 2.6 2.49 2.55 3.39 3.46 3.3 3.38
Torque Constant (Kt) (+/– 10% @ 25˚C) lbf-in/A 1.7 3.7 5.3 6.7 1.7 3.7 6.1 7.2 1.8 3.7 6.2 7.2
  Nm/A 0.2 0.4 0.6 0.8 0.2 0.4 0.7 0.8 0.2 0.4 0.7 0.8
Continuous Current Rating A 4.9 2.2 1.5 1.2 7.6 3.5 2 1.8 9.4 4.6 2.6 2.3
Peak Current Rating A 9.7 4.5 2.9 2.3 15.2 7 4.1 3.5 18.7 9.2 5.3 4.7
Motor Data
Voltage Constant (Ke) (+/– 10% @ 25˚C) Vrms/Krpm 16.9 35.5 51.5 64.8 16.9 35.5 58.6 69.3 17.3 36 59.9 69.3
  Vpk/Krpm 23.9 50.2 72.8 91.7 23.9 50.2 82.9 98 24.5 50.9 84.8 98
Pole Configuration   8 8 8 8 8 8 8 8 8 8 8 8
Resistance (L-L) (+/– 5% @ 25˚C) Ohms 2.6 12.52 28.82 45.79 1.11 5.26 15.51 20.69 0.76 3.14 9.57 12.22
Inductance (L-L) (+/– 15%) mH 4.6 21.4 47.9 68.3 2.5 10.2 28.3 39.5 1.7 7.4 18.5 27.4
SLM Armature Inertia (+/– 5%) bf-in-sec^2 0.000237       0.000413       0.000589
  Kg-cm^2 0.268       0.466       0.665
Brake Inertia lbf-in-sec^2 0.00012
  Kg-cm^2 0.135
Brake Current @ 24 VDC A 0.33 0.33 0.33 0.33 0.33 0.33 0.33 0.33 0.33 0.33 0.33 0.33
Brake Holding Torque lbf-in 19 19 19 19 19 19 19 19 19 19 19 19
  Nm 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2
Brake Engage/Disengage Time ms 14/28 14/28 14/28 14/28 14/28 14/28 14/28 14/28 14/28 14/28 14/28 14/28
Mechanical Time Constant (tm) ms 2.2 2.38 2.6 2.61 1.62 1.74 1.89 1.8 1.5 1.45 1.59 1.52
Electrical Time Constant (te) ms 1.76 1.71 1.66 1.49 2.24 1.95 1.82 1.91 2.27 2.36 1.93 2.24
Friction Torque lbf-in (Nm) 0.27 (0.031) 0.27 (0.031) 0.27 (0.031) 0.27 (0.031) 0.34 (0.038) 0.34 (0.038) 0.34 (0.038) 0.34 (0.038) 0.38 (0.043) 0.38 (0.043) 0.38 (0.043) 0.38 (0.043)
Insulation Class   180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H)
Insulation System Volt Rating Vrms 460 460 460 460 460 460 460 460 460 460 460 460
Environmental Rating   IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S

For amplifiers using peak sinusoidal ratings, multiply RMS sinusoidal Kt by 0.707 and current by 1.414.
SLM060 数据曲线Open arrow
SLM075 性能规格Open arrow

SLM/G075 Electrical and Mechanical Specifications

Motor Stacks   118 138 158 168 218 238 258 268 318 338 358 368
Voltage Rating Vrms 115 230 400 460 115 230 400 460 115 230 400 460
Speed @ Bus Voltage rpm 4000 4000 4000 4000 4000 4000 4000 4000 4000 4000 4000 4000
RMS Sinusoidal Commutation
Continuous Motor Torque lbf-in 16.6 16.4 16.3 16 26 26.4 26.2 26.4 37.9 35.9 37.3 36.4
  Nm 1.88 1.85 1.84 1.81 2.94 2.89 2.96 2.98 4.29 4.05 4.21 4.12
Peak Motor Torque lbf-in 33.3 32.8 32.6 32.1 52 52.7 52.4 52.8 75.9 71.7 74.6 72.9
  Nm 3.76 3.7 3.68 3.62 5.88 5.96 5.92 5.96 8.57 8.1 8.43 8.23
Torque Constant (Kt) (+/– 10% @ 25˚C) lbf-in/A 3.4 6.6 12.5 13.1 3.7 6.8 11.6 13.5 3.4 6.8 11.6 13.9
  Nm/A 0.4 0.7 1.4 1.5 0.4 0.8 1.3 1.5 0.4 0.8 1.3 1.6
Continuous Current Rating A 5.5 2.8 1.5 1.4 7.9 4.4 2.5 2.2 12.5 5.9 3.6 2.9
Peak Current Rating A 11 5.6 2.9 2.7 15.9 8.7 5.1 4.4 25.1 11.8 7.2 5.8
O-PeaK Sinusoidal Commutation
Continuous Motor Torque lbf-in 16.6 16.4 16.3 16 26 26.4 26.2 26.4 37.9 35.9 37.3 36.4
  Nm 1.88 1.85 1.84 1.81 2.94 2.98 2.96 2.98 4.29 4.05 4.21 4.12
Peak Motor Torque lbf-in 33.3 32.8 32.6 32.1 52 52.7 52.4 52.8 75.9 71.7 74.6 72.9
  Nm 3.76 3.7 3.68 3.62 5.88 5.96 5.92 5.96 8.57 8.1 8.43 8.23
Torque Constant (Kt) (+/– 10% @ 25˚C) lbf-in/A 2.4 4.6 8.8 9.3 2.6 4.8 8.2 9.6 2.4 4.8 8.2 9.9
  Nm/A 0.3 0.5 1 1 0.3 0.5 0.9 1.1 0.3 0.5 0.9 1.1
Continuous Current Rating A 7.8 4 2.1 1.9 11.2 6.2 3.6 3.1 17.7 8.4 5.1 4.1
Peak Current Rating A 15.6 7.9 4.1 3.9 22.4 12.3 7.2 6.2 35.5 16.8 10.1 8.3
Motor stator Data
Voltage Constant (Ke) (+/– 10% @ 25˚C) Vrms/Krpm 23.1 44.7 85.2 89.5 25 46.2 78.9 92.4 23.1 46.2 79.4 95.3
  Vpk/Krpm 32.7 63.3 120.4 126.5 35.4 65.3 111.6 130.6 32.7 65.3 112.3 134.7
Pole Configuration   8 8 8 8 8 8 8 8 8 8 8 8
Resistance (L-L)(+/– 5% @ 25˚C) Ohms 1.66 6.42 23.49 26.84 0.83 2.75 8.15 11.01 0.4 1.77 4.83 7.29
Inductance (L-L)(+/– 15%) mH 4.6 17.3 62.6 69.2 2.6 8.8 25.7 35.2 1.4 5.8 17 24.5
SLM Armature Inertia lbf-in-sec^2 (+/– 5%) 0.00054       0.00097       0.0014
  Kg-cm^2 0.616       1.1       1.583
Brake Inertia lbf-in-sec^2 0.000159
  Kg-cm^2 0.18
Brake Current @ 25 VDC A 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Brake Holding Torque lbf-in 40 40 40 40 40 40 40 40 40 40 40 40
  Nm 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5
Brake Engage/Disengage Time ms 9/35 9/35 9/35 9/35 9/35 9/35 9/35 9/35 9/35 9/35 9/35 9/35
Mechanical Time Constant (tm) ms 1.71 1.77 1.79 1.85 1.31 1.27 1.29 1.27 1.05 1.18 1.09 1.14
Electrical Time Constant (te) ms 2.78 2.69 2.67 2.58 3.11 3.19 3.15 3.2 3.65 3.26 3.53 3.37
Friction Torque lbf-in (Nm) 0.51 (0.058) 0.51 (0.058) 0.51 (0.058) 0.51 (0.058) 0.67 (0.075) 0.67 (0.075) 0.67 (0.075) 0.67 (0.075) 0.90 (0.101) 0.90 (0.101) 0.90 (0.101) 0.90 (0.101)
Insulation Class   180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H)
Insulation System Volt Rating Vrms 460 460 460 460 460 460 460 460 460 460 460 460
Environmental Rating   IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S

For amplifiers using peak sinusoidal ratings, multiply RMS sinusoidal Kt by 0.707 and current by 1.414.
SLM075 数据曲线Open arrow
SLM090 性能规格Open arrow

SLM/G090 Electrical and Mechanical Specifications

Motor Stacks   118 138 158 168 218 238 258 268 338 358 368
Voltage Rating Vrms 115 230 400 460 115 230 400 460 230 400 460
Speed @ Bus Voltage rpm 4000 4000 4000 4000 4000 4000 4000 4000 4000 4000 4000
Sinusoidal Commutation Data
Continuous Motor Torque lbf-in 23.8 24 23.7 24.7 39.6 40 39.5 39.9 55.7 55.4 55.7
  Nm 2.68 2.71 2.67 2.79 4.47 4.52 4.46 4.51 6.3 6.26 6.3
Peak Motor Torque lbf-in 47.5 48 47.3 49.4 79.1 80 79 79.9 111.5 110.9 111.5
  Nm 5.37 5.42 5.35 5.58 8.94 9.04 8.93 9.02 12.59 12.52 12.59
Torque Constant (Kt) (+/– 10% @ 25˚C) lbf-in/A 3.2 6.6 11.6 13.2 3.2 6.6 11.6 13.2 6.6 11.6 13.1
  Nm/A 0.37 0.7 1.3 1.5 0.4 0.7 1.3 1.5 0.7 1.3 1.5
Continuous Current Rating A 8.2 4 2.3 2.1 13.6 6.8 3.8 3.4 9.5 5.3 4.8
Peak Current Rating A 16.4 8.1 4.6 4.2 27.3 13.5 7.6 6.7 19 10.7 9.5
O-PK Sinusoidal Commutation Data
Continuous Motor Torque lbf-in 23.8 24 23.7 24.7 39.6 40 39.5 39.9 55.7 55.4 55.7
  Nm 2.68 2.71 2.67 2.79 4.47 4.52 4.46 4.51 6.3 6.26 6.3
Peak Motor Torque lbf-in 47.5 48 47.3 49.4 79.1 80 79 79.9 115.5 110.9 111.5
  Nm 5.37 5.42 5.35 5.58 8.94 9.04 8.93 9.02 12.59 12.52 12.59
Torque Constant (Kt) (+/– 10% @ 25˚C) lbf-in/A 2.3 4.7 8.2 9.4 2.3 4.7 8.2 9.4 4.6 8.2 9.3
  Nm/A 0.26 0.5 0.9 1.1 0.3 0.5 0.9 1.1 0.5 0.9 1
Continuous Current Rating A 11.6 5.7 3.2 2.9 19.3 9.5 5.4 4.8 13.4 7.5 6.7
Peak Current Rating A 23.2 11.4 6.5 5.9 38.6 19.1 10.8 9.5 26.9 15.1 13.4
Motor Data
Voltage Constant (Ke) (+/– 10% @ 25˚C) Vrms/Krpm 22.1 45.2 78.9 90.4 22.1 45.2 78.9 90.4 44.7 79.4 89.5
  Vpk/Krpm 31.3 64 111.6 127.9 31.3 64 111.6 127.9 63.3 112.3 126.5
Pole Configuration   8 8 8 8 8 8 8 8 8 8 8
Resistance (L-L)(+/– 5% @ 25˚C) Ohms 0.75 3.06 9.57 11.55 0.3 1.21 3.78 4.86 0.69 2.19 2.75
Inductance (L-L)(+/– 15%) mH 6.1 25.6 78 88.6 2.9 10.5 37.2 43.1 6.6 24.7 31.4
SLM Armature Inertia (+/– 5%) lbf-in-sec^2 0.00054 0.00097 0.0014
  Kg-cm2 0.609 1.09 1.58
Brake Inertia lbf-in-sec^2 0.00096
  Kg-cm^2 1.08
Brake Current @ 24 VDC A 0.67 0.67 0.67 0.67 0.67 0.67 0.67 0.67 0.67 0.67 0.67
Brake Holding Torque lbf-in (Nm) 97 (11) 97 (11) 97 (11) 97 (11) 97 (11) 97 (11) 97 (11) 97 (11) 97 (11) 97 (11) 97 (11)
Brake Engage/Disengage Time ms 20/29 20/29 20/29 20/29 20/29 20/29 20/29 20/29 20/29 20/29 20/29
Mechanical Time Constant (tm) ms 0.83 0.82 0.84 0.77 0.59 0.58 0.59 0.58 0.48 0.49 0.48
Electrical Time Constant (te) ms 8.21 7.31 8.14 7.67 9.88 8.66 9.85 8.88 9.57 11.3 11.43
Friction Torque lbf-in (Nm) 0.68 (0.077) 0.68 (0.077) 0.68 (0.077) 0.68 (0.077) 0.85 (0.095) 0.85 (0.095) 0.85 (0.095) 0.85 (0.095) 1.06 (0.119) 1.06 (0.119) 1.06 (0.119)
Insulation Class   180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H)
Insulation System Volt Rating Vrms 460 460 460 460 460 460 460 460 460 460 460
Environmental Rating   IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S


For amplifiers using peak sinusoidal ratings, multiply RMS sinusoidal Kt by 0.707 and current by 1.414.
SLM090 数据曲线Open arrow
SLM115 性能规格Open arrow

SLM/G115 Electrical and Mechanical Specifications

Motor Stacks   118 138 158 168 238 258 268 338 358 368
Voltage Rating Vrms 115 230 400 460 230 400 460 230 400 460
Speed @ Bus Voltage rpm 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000
Sinusoidal Commutation Data
Continuous Motor Torque lbf-in 74.1 74.1 74.3 74.1 123.6 121.4 123.8 172.3 168.9 176.9
  Nm 8.37 8.37 8.39 8.37 13.96 13.72 13.96 19.46 19.09 19.98
Peak Motor Torque lbf-in 148.2 148.2 148.6 148.1 247.2 242.8 247.2 344.5 337.8 353.7
  Nm 16.74 16.74 16.79 16.74 27.93 27.43 27.93 38.93 38.17 39.96
Torque Constant (Kt) (+/– 10% @ 25˚C) lbf-in/A 4.3 8.7 15.7 17.3 8.7 15.8 17.3 8.5 15.8 17.5
  Nm/A 0.49 1 1.8 2 1 1.8 2 1 1.8 2
Continuous Current Rating A 19.1 9.5 5.3 4.8 15.9 8.6 8 22.7 11.9 11.3
Peak Current Rating A 38.2 19.1 10.6 9.5 31.8 17.1 15.9 45.4 23.8 22.5
O-PK Sinusoidal Commutation Data
Continuous Motor Torque lbf-in 74.1 74.1 74.3 74.1 123.6 121.4 123.6 172.3 168.9 176.9
  Nm 8.37 8.37 8.39 8.37 13.96 13.72 13.96 19.46 19.09 19.98
Peak Motor Torque lbf-in 148.2 148.2 148.6 148.1 247.2 242.8 247.2 344.5 337.8 353.7
  Nm 16.74 16.74 16.79 16.74 27.93 27.43 27.93 38.93 38.17 39.96
Torque Constant (Kt) (+/– 10% @ 25˚C) lbf-in/A 3.1 6.1 11.1 12.3 6.1 11.2 12.3 6 11.2 12.4
  (Nm/A) 0.35 0.7 1.3 1.4 0.7 1.3 1.4 0.7 1.3 1.4
Continuous Current Rating A 27 13.5 7.5 6.7 22.5 12.1 11.3 32.1 16.9 15.9
Peak Current Rating A 54 27 15 13.5 45 24.2 22.5 64.2 33.7 31.9
Motor Data
Voltage Constant (Ke) (+/– 10% @ 25˚C) Vrms/Krpm 29.6 59.2 106.9 118.5 59.2 108.2 118.5 58 108.2 119.8
  Vpk/Krpm 41.9 83.8 151.2 167.6 83.8 153 167.6 82 153 169.4
Pole Configuration   8 8 8 8 8 8 8 8 8 8
Resistance (L-L) (+/– 5% @ 25˚C) Ohms 0.2 0.8 2.6 3.21 0.34 1.17 1.35 0.2 0.72 0.81
Inductance (L-L) (+/– 15%) mH 3.3 13 42.4 52.1 5.9 21.1 25.3 4 13.1 17.1
SLM Armature Inertia (+/– 5%) lbf-in-sec^2 0.00342 0.0062 0.00899
  Kg-cm^2 3.86 7 10.14
Brake Inertia lbf-in-sec^2 0.00327
  Kg-cm^2 3.7
Brake Current @ 24 VDC A 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75
Brake Holding Torque lbf-in (Nm) 195 (22) 195 (22) 195 (22) 195 (22) 195 (22) 195 (22) 195 (22) 195 (22) 195 (22) 195 (22)
Brake Engage/Disengage Time ms 25/50 25/50 25/50 25/50 25/50 25/50 25/50 25/50 25/50 25/50
Mechanical Time Constant (tm) ms 0.8 0.8 0.79 0.8 0.61 0.63 0.61 0.54 0.56 0.51
Electrical Time Constant (te) ms 16.26 16.26 16.34 16.25 17.6 18.06 18.72 18.5 18.14 21.16
Friction Torque lbf-in (Nm) 1.43 (0.16) 1.43 (0.16) 1.43 (0.16) 1.43 (0.16) 1.81 (0.204) 1.81 (0.204) 1.81 (0.204) 2.32 (0.262) 2.32 (0.262) 2.32 (0.262)
Insulation Class   180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H)
Insulation System Volt Rating Vrms 460 460 180 (H) 460 460 460 460 460 460 460
Environmental Rating   IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S


For amplifiers using peak sinusoidal ratings, multiply RMS sinusoidal Kt by 0.707 and current by 1.414.
SLM115 数据曲线Open arrow
SLM142 性能规格Open arrow

SLM142 Electrical and Mechanical Specifications

Motor Stacks   118 138 158 168 238 258 268 358 368
Bus Voltage Vrms 115 230 400 460 230 400 460 400 460
Speed @ Bus Voltage RPM 2400 2400 2400 2400 2400 2400 2400 2400 2400
Sinusoidal Commutation Data
Continuous Motor Torque lbf-in 108.5 107.2 104.8 109.4 179.9 178.8 177.8 237.2 238.3
  Nm 12.25 (2.12 11.84 12.36 20.32 20.2 20.09 26.8 26.93
Peak Motor Torque lbf-in 216.9 214.5 209.5 218.8 359.8 357.6 355.7 474.4 476.7
  Nm 24.51 24.23 23.67 24.72 40.65 40.4 40.19 53.6 53.85
Torque Constant (Kt) (+/– 10% @ 25˚C) lbf-in/A 5.9 11.8 20.2 23.6 11.8 20.2 23.6 20.2 24
  Nm/A 0.67 1.3 2.3 2.7 1.3 2.3 2.7 2.3 2.7
Continuous Current Rating A 20.5 10.2 5.8 5.2 17 9.9 8.4 13.1 11.1
Peak Current Rating A 41.1 20.3 11.6 10.4 34.1 19.8 16.8 26.2 22.2
O-PK Sinusoidal Commutation Data
Continuous Motor Torque lbf-in 108.5 107.2 104.8 109.4 179.9 178.8 177.8 237.2 238.3
  Nm 12.25 12.12 11.84 12.36 20.32 20.2 20.09 26.8 26.93
Peak Motor Torque lbf-in 216.9 214.5 209.5 218.8 359.8 357.6 355.7 474.4 476.7
  Nm 24.51 24.23 23.67 24.72 40.65 40.4 40.19 53.6 53.85
Torque Constant (Kt) (+/– 10% @ 25˚C) lbf-in/A 4.2 8.3 14.3 16.7 8.3 14.3 16.7 14.3 17
  Nm/A 0.47 0.9 1.6 1.9 0.9 1.6 1.9 1.6 1.9
Continuous Current Rating A 29.1 14.4 8.2 7.3 24.1 14 11.9 18.5 15.7
Peak Current Rating A 58.1 28.7 16.4 14.7 48.2 27.9 23.8 37.1 31.4
Motor Data
Voltage Constant (Ke) (+/– 10% @ 25˚C) Vrms/Krpm 40.3 80.6 138.1 161.1 80.6 138.1 161.1 138.1 164
  Vpk/Krpm 57 113.9 195.3 227.9 113.9 195.3 227.9 195.3 232
Pole Configuration 8 8 8 8 8 8 8 8 8
Resistance (L-L) (+/– 5% @ 25˚C) Ohms 0.21 0.87 2.68 3.34 0.339 1.01 1.39 0.61 0.858
Inductance (L-L) (+/– 15%) mH 5.4 21.7 63.9 78.3 10.4 27.6 41.5 20 28.2
Armature Inertia (+/– 5%) lb-in-sec^2 0.00927 0.01537 0.02146
  Kg-cm^2 10.47 17.363 24.249
Brake Inertia lb-in-sec^2 0.008408
  Kg-cm^2 9.5
Brake Current @ 24 VDC A 1 1 1 1 1 1 1 1 1
Brake Holding Torque lbf-in (Nm) 354 (39.99) 354 (39.99) 354 (39.99) 354 (39.99) 354 (39.99) 354 (39.99) 354 (39.99) 354 (39.99) 354 (39.99)
Brake Engage/Disengage Time ms 25/73 25/73 25/73 25/73 25/73 25/73 25/73 25/73 25/73
Mechanical Time Constant (tm) ms 1.23 1.26 1.32 1.21 0.81 0.82 0.83 0.7 0.69
Electrical Time Constant (te) ms 25.59 25.02 23.88 23.43 30.58 27.3 29.89 32.6 32.9
Friction Torque lbf-in (Nm) 2.07 (0.234) 2.07 (0.234) 2.07 (0.234) 2.07 (0.234) 2.65 (0.299) 2.65 (0.299) 2.65 (0.299) 3.32 (0.375) 3.32 (0.375)
Insulation Class   180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H)
Insulation System Volt Rating Vrms 460 460 460 460 460 460 460 460 460
Environmental Rating   IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S


For amplifiers using peak sinusoidal ratings, multiply RMS sinusoidal Kt by 0.707 and current by 1.414. Gearmotor not available on 142 frame motor. Test data derived using NEMA recommended.
SLM142 数据曲线Open arrow
SLM180 性能规格Open arrow

SLM180 Electrical and Mechanical Specifications


Motor Stacks   138 158 168 238 258 268 358 368
Bus Voltage Vrms 230 400 460 230 400 460 400 460
Speed @ Bus Voltage RPM 2400 2400 2400 2400 2400 2400 2400 2400
RMS Sinusoidal Commutation Data
Continuous Motor Torque lbf-in 254.2 249.9 261.9 424.8 423 427.5 595.6 611.6
  Nm 28.72 28.23 29.59 47.99 47.79 48.3 67.29 69.1
Peak Motor Torque lbf-in 508.4 499.8 523.8 849.6 846 855.1 1191.2 1223.2
  Nm 57.44 56.47 59.18 95.99 95.59 96.61 134.58 138.19
Torque Constant (Kt) (+/– 10% @ 25˚C) lbf-in/A 12.6 21.8 25.2 12.6 21.8 25.2 21.4 25.2
  Nm/A 1.4 2.5 2.8 1.4 2.5 2.8 2.4 2.8
Continuous Current Rating (IG) A 22.6 12.8 11.6 37.7 21.7 19 31.1 27.2
Peak Current Rating A 45.2 25.6 23.3 75.5 43.4 38 62.2 54.3
O-PK Sinusoidal Commutation Data
Continuous Motor Torque lbf-in 254.2 249.9 261.9 424.8 423 427.5 595.6 611.6
  Nm 28.72 28.23 29.59 47.99 47.79 48.3 67.29 69.1
Peak Motor Torque lbf-in 508.4 499.8 523.8 849.6 846 855.1 1191.2 1223.2
  Nm 57.44 56.47 59.18 95.99 95.59 96.61 134.58 138.19
Torque Constant (Kt) (+/– 10% @ 25˚C) lbf-in/A 8.9 15.4 17.8 8.9 15.4 17.8 15.1 17.8
  Nm/A 1 1.7 2 1 1.7 2 1.7 2
Continuous Current Rating A 31.9 18.1 16.4 53.4 30.7 26.8 44 38.4
Peak Current Rating A 63.9 36.2 32.9 106.7 61.3 53.7 88 76.8
Motor Data
Voltage Constant (Ke) (+/– 10% @ 25˚C) Vrms/Krpm 85.9 148.9 171.8 85.9 148.9 171.8 146.1 171.8
  Vpk/Krpm 121.5 210.6 243 121.5 210.6 243 206.6 243
Pole Configuration   8 8 8 8 8 8 8 8
Resistance (L-L) (+/– 5% @ 25˚C) Ohms 0.325 1.01 1.224 0.134 0.407 0.53 0.233 0.306
Inductance (L-L) (+/– 15%) mH 8.3 24.8 29.4 3.9 11.8 15.8 7.5 10.3
Armature Inertia (+/– 5%) lb-in-sec^2 0.05051 0.08599 0.12147
  Kg-cm^2 57.071 97.159 137.246
Brake Inertia lb-in-sec^2 0.02815
  Kg-cm^2 31.8
Brake Current @ 24 VDC A 1.45 1.45 1.45 1.45 1.45 1.45 1.45 1.45
Brake Holding Torque lbf-in (Nm) 708 (80) 708 (80) 708 (80) 708 (80) 708 (80) 708 (80) 708 (80) 708 (80)
Brake Engage/Disengage Time ms 53/97 53/97 53/97 53/97 53/97 53/97 53/97 53/97
Mechanical Time Constant (tm) ms 2.25 2.33 2.12 1.58 1.59 1.56 1.34 1.27
Electrical Time Constant (te) ms 25.44 24.58 24.03 29.38 29.14 29.76 32.07 33.81
Friction Torque lbf-in (Nm) 5.07 (0.573) 5.07 (0.573) 5.07 (0.573) 7.80 (0.881) 7.80 (0.881) 7.80 (0.881) 11.52 (1.302) 11.52 (1.302)
Insulation Class   180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H)
Insulation System Volt Rating Vrms 460 460 460 460 460 460 460 460
Thermal Switch, Case Temp deg C 100 100 100 100 100 100 100 100
Environmental Rating   IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S

For amplifiers using peak sinusoidal ratings, multiply RMS. sinusoidal Kt by 0.707 and current by 1.414. Gearmotor not available on 180 frame. Test data derived using NEMA recommended aluminum heatsink 16" x 16" x 1" at 25°C ambient
SLM180 数据曲线Open arrow
Printable view

产品资料

目录和手册

search
x
Industrial - Exlar, 手册/目录

工程产品目录
Industrial - Exlar

危险场所目录

SLM / SLG危险区域目录
Industrial - Exlar, 手册

SLM / SLG安装和维修手册
Industrial - Exlar, 手册/目录

SLM / SLG系列目录部分
Show 资源

执行器技术数据

手册和技术提示

search
x
Industrial - Exlar, 电动执行器

比较T-LAM（分段层压）定子技术与传统的无刷电机
Industrial - Exlar, 执行器技术提示

所述KTY84-130电机绕组温度传感器的停止
Industrial - Exlar, 执行器技术提示

占空比，峰值电流和温度
Industrial - Exlar, 执行器技术提示

无刷电机环境温度升高
Industrial - Exlar, 执行器技术提示

Exlar执行器使用B＆R反馈和M连接器
Industrial - Exlar, 执行器技术提示

Exlar执行器使用Bosch-Rexroth反馈和M连接器
Industrial - Exlar, 执行器技术提示

Exlar执行器使用西门子反馈和M连接器
Siemens - ‘M’ Manufacturers Connector, Cable & Wiring Information
Industrial - Exlar, 执行器技术提示

识别电机温度传感器限制
Industrial - Exlar, 执行器技术提示

SLM / G C-P连接器表
Industrial - Exlar, 执行器技术提示

SLM/ G M连接电缆表
Show 资源

视频

search
x
Industrial - Exlar, 产品视频

Exlar产品概述
Show 资源

在我们的信息中心查找更多资源。

This site uses cookies to improve our service, you can find out more here - for the best web experience please accept cookies

x
